Winbond Electronics Corporation W551C080
The W551Cxxx series is a serial voice memory IC designed to interface directly with Winbond PowerSpeech™ , BandDirector™ , and ViewTalk™ family ICs to meet the increasing market demand for longer playback duration. The W551Cxxx uses the same three-pin serial interface that Winbond serial flash memory W55Fxx uses, which makes it easier to simulate and verify the memory contents in advance. The following table shows the part numbers in the W551Cxxx series and their respective memory density.| Part No. | W551C080 |
|---|---|
| Datasheet | W551C080 Download |
| Manufacturer |  Winbond Electronics Corporation |
| Description | Serial Voice Memory |
| Buy | Stock & Price |

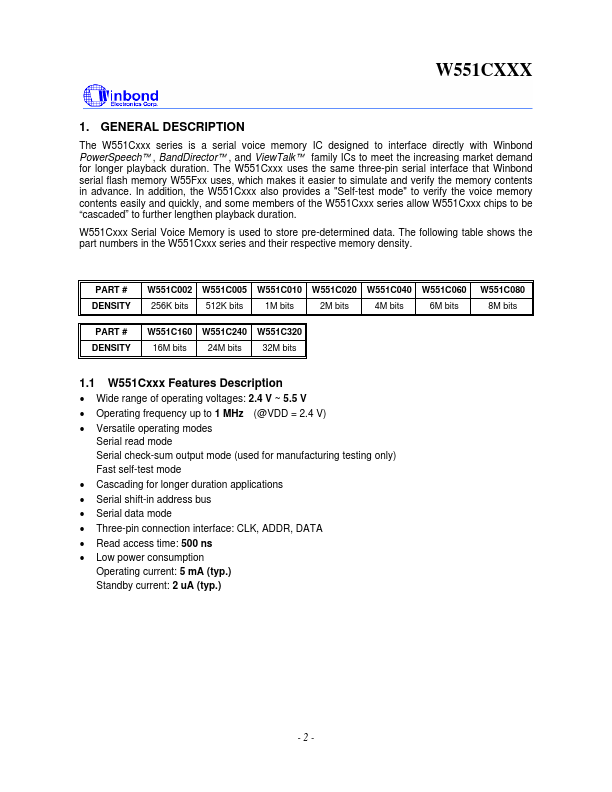

GENERAL DESCRIPTION
In addition, the W551Cxxx also provides a "Self-test mode" to verify the voice memory contents easily and quickly, and some members of the W551Cxxx series allow W551Cxxx chips to be “cascaded” to further lengthen playback duration. W551Cxxx Serial Voice Memory is used to store pre-determined data. PART # DENSITY W551C002 W551C005 W551C010 W551C020 W551C040 W551C060 W551C080 256K bits 512K bits 1M bits 2M bits 4M bits 6M bits 8M bits PART # DENSITY W551C160 W551C240 W551C320 16M bits 24M bits 32M bits 1.1 W551CxxxFEATURES
DESCRIPTION
● Wide range of operating voltages: 2.4 V ~ 5.5 V● Operating frequency up to 1 MHz (@VDD = 2.4 V)
● Versatile operating modes Serial read mode Serial check-sum output mode (used for manufacturing testing only) Fast self-test mode
● Cascading for longer duration applications
● Serial shift-in address bus
● Serial data mode
● Three-pin connection interface: CLK, ADDR, DATA
● Read access time: 500 ns
● Low power consumption Operating curr...
