W561S30

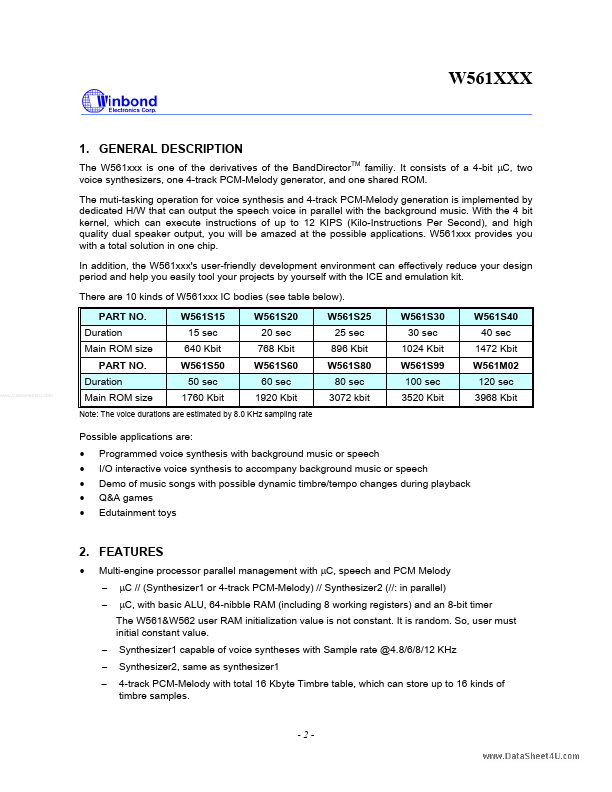

Description
The W561xxx is one of the derivatives of the BandDirectorTM familiy.
Key Features
- Wide operating voltage range: 2.4 to 5.5 volts
- Low power consumption (VDD = 5 Volt)
- Standby current < 2 µA - Operating current (no load with ring oscillator) < 1 mA
- Main oscillator: Crystal/ Ring oscillation selectable by pin option
- DAC1/2 provided for stereo voice output
- Melody + Voice output for DAC1
- Powerful instruction set
- 8-level STACK shared by CALL, Timer, Synthesizer and TG Publication Release Date: June 3, 2003
- 3- Revision A5 W561XXX .DataShe
