Winbond Electronics Corporation W561S60
The W561xxx is one of the derivatives of the BandDirectorTM familiy. It consists of a 4-bit µC, two voice synthesizers, one 4-track PCM-Melody generator, and one shared ROM. The muti-tasking operation for voice synthesis and 4-track PCM-Melody generation is implemented by dedicated H/W that can output the speech voice in parallel with the background music.| Part No. | W561S60 |
|---|---|
| Datasheet | W561S60 Download |
| Manufacturer |  Winbond Electronics Corporation |
| Description | 4-TRACK PCM-MELODY |
| Buy | Stock & Price |

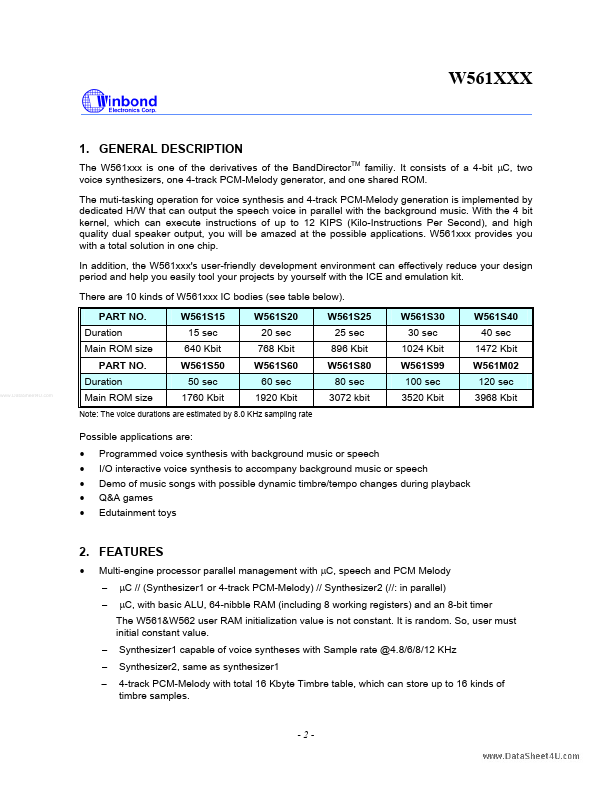

GENERAL DESCRIPTION
With the 4 bit kernel, which can execute instructions of up to 12 KIPS (Kilo-Instructions Per Second), and high quality dual speaker output, you will be amazed at the possible applications. W561xxx provides you with a total solution in one chip. In addition, the W561xxx's user-friendly development environment can effectively reduce your design period and help you easily tool your projects by yourself with the ICE and emulation kit. There are 10 kinds of W561xxx IC bodies (see table below). PART NO. W561S15 W561S20 Duration 15 sec 20 sec Main ROM size 640 Kbit 768 Kbit PART NO. W561S50 W561S60 Duration 50 sec 60 sec Main ROM size 1760 Kbit 1920 Kbit Note: The voice durations are estimated by 8.0 KHz sampling rate W561S25 25 sec 896 Kbit W561S80 80 sec 3072 kbit W561S30 30 sec 1024 Kbit W561S99 100 sec 3520 Kbit W561S40 40 sec 1472 Kbit W561M02 120 sec 3968 Kbit Possible applications are:● Programmed voice synthesis with background music or speech
● I/O interactive v...
