W682310 Overview

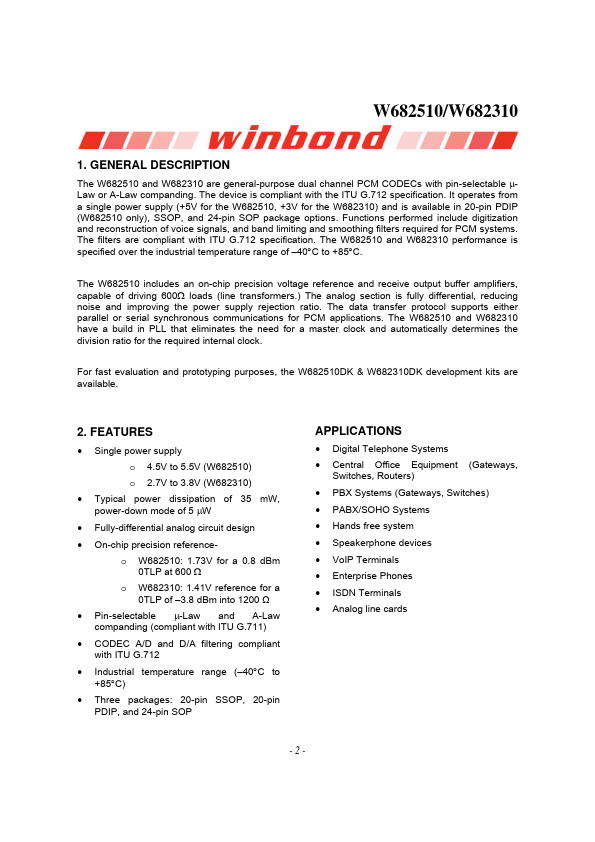

The W682510 and W682310 are general-purpose dual channel PCM CODECs with pin-selectable μLaw or A-Law panding. The device is pliant with the ITU G.712 specification. It operates from a single power supply (+5V for the W682510, +3V for the W682310) and is available in 20-pin PDIP (W682510 only), SSOP, and 24-pin SOP package options.
W682310 Key Features
- Single power supply o 4.5V to 5.5V (W682510)
- Typical power dissipation of 35 mW, power-down mode of 5 μW
- Fully-differential analog circuit design
- On-chip precision referenceo W682510: 1.73V for a 0.8 dBm 0TLP at 600 Ω
- Pin-selectable μ-Law and A-Law panding (pliant with ITU G.711)
- CODEC A/D and D/A filtering pliant with ITU G.712
- Industrial temperature range (-40°C to +85°C)
- Three packages: 20-pin SSOP, 20-pin PDIP, and 24-pin SOP
W682310 Applications
- Single power supply o 4.5V to 5.5V (W682510)
