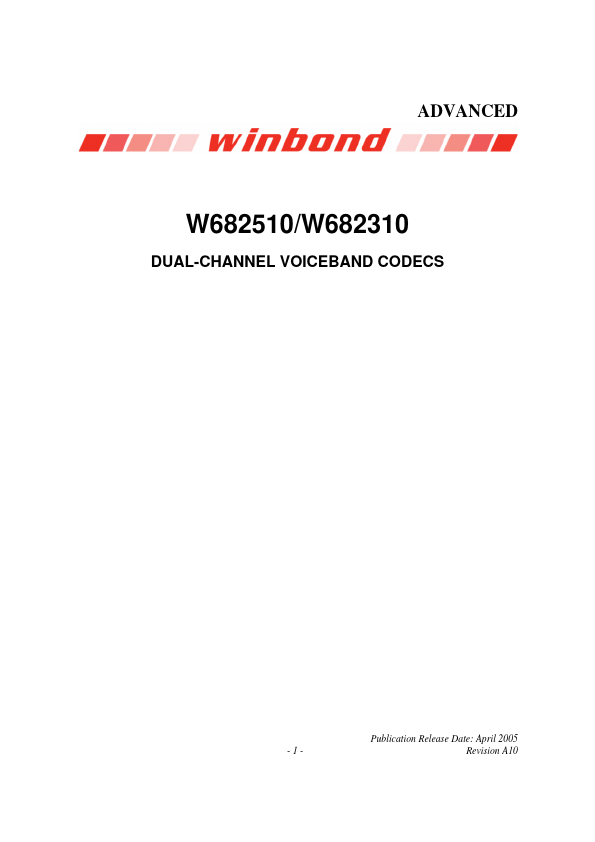

W682510

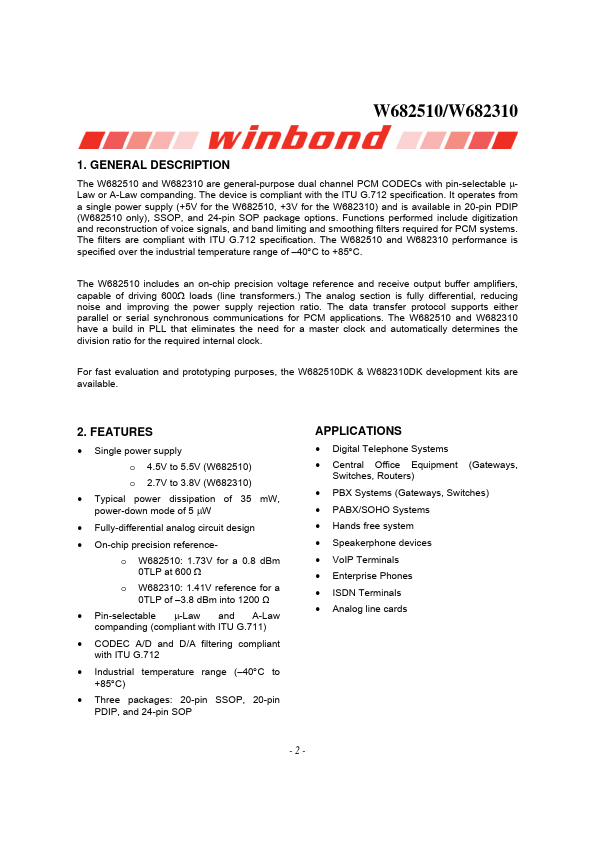

Description
The W682510 and W682310 are general-purpose dual channel PCM CODECs with pin-selectable μLaw or A-Law panding.
Key Features
- Typical power dissipation of 35 mW, power-down mode of 5 μW
- Fully-differential analog circuit design
- On-chip precision referenceo W682510: 1.73V for a 0.8 dBm 0TLP at 600 Ω o W682310: 1.41V reference for a 0TLP of -3.8 dBm into 1200 Ω
- Pin-selectable μ-Law and A-Law panding (pliant with ITU G.711)
- CODEC A/D and D/A filtering pliant with ITU G.712
- Industrial temperature range (-40°C to +85°C)
- Three packages: 20-pin SSOP, 20-pin PDIP, and 24-pin SOP
