Winbond Electronics Corporation W742E-C811
The W742E/C811 (W742C811 is mask type, W742E811 is electrical erasable EPROM type) is a highperformance 4-bit microcontroller (µC) that built in 640-dot LCD driver. The device contains a 4-bit ALU, two 8-bit timers, two dividers in dual-clock operation, a 40 × 16 LCD driver, ten 4-bit I/O ports (including 2 output port for LED driving), multiple frequency output, and one channel DTMF generator. The W742E/C811 operates on very low current and has three power reduction modes, hold mode, stop mode and slow mode, which help to minimize power dissipation.| Part No. | W742E-C811 |
|---|---|
| Datasheet | W742E-C811 Download |
| Manufacturer |  Winbond Electronics Corporation |
| Description | 4-BIT MICROCONTROLLER |
| Buy | Stock & Price |

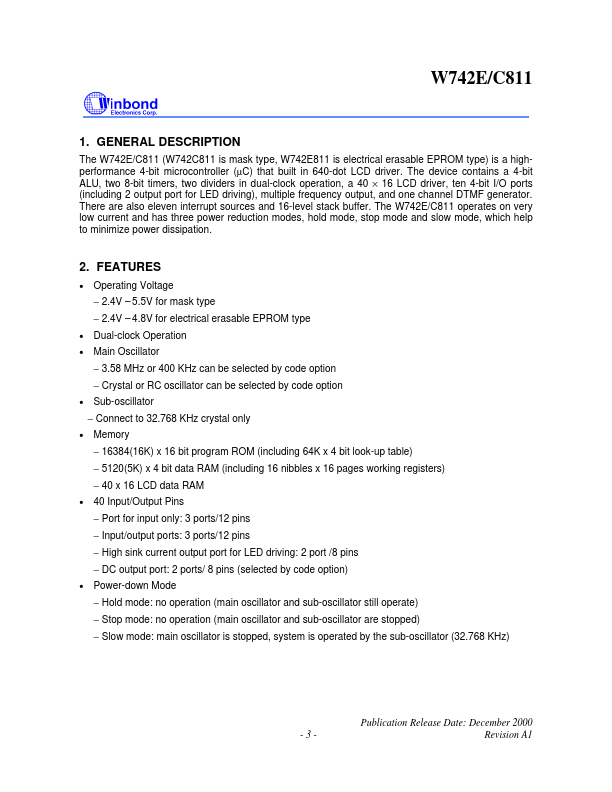

GENERAL DESCRIPTION
There are also eleven interrupt sources and 16-level stack buffer. 2.FEATURES
● Operating Voltage − 2.4V – 5.5V for mask type − 2.4V – 4.8V for electrical erasable EPROM type● Dual-clock Operation
● Main Oscillator − 3.58 MHz or 400 KHz can be selected by code option − Crystal or RC oscillator can be selected by code option
● Sub-oscillator − Connect to 32.768 KHz crystal only
● Memory − 16384(16K) x 16 bit program ROM (including 64K x 4 bit look-up table) − 5120(5K) x 4 bit data RAM (including 16 nibbles x 16 pages working registers) − 40 x 16 LCD data RAM
● 40 Input/Output Pins − Port for input only: 3 ports/12 pins − Input/output ports: 3 ports/12 pins − High sink current output port for LED driving: 2 port /8 pins − DC output port: 2 ports/ 8 pins (selected by code option)
● Power-down Mode − Hold mode: no operation (main oscillator and sub-oscillator still operate) − Stop mode: no operation (main oscillator and sub-oscillator are stopped) − Slow mode: main os...
