Winbond Electronics Corporation W77E532
The W77E532A is a fast 8051 compatible microcontroller with a redesigned processor core without wasted clock and memory cycles.| Part No. | W77E532 |
|---|---|
| Datasheet | W77E532 Download |
| Manufacturer |  Winbond Electronics Corporation |
| Description | 8-BIT MICROCONTROLLER |
| Buy | Stock & Price |

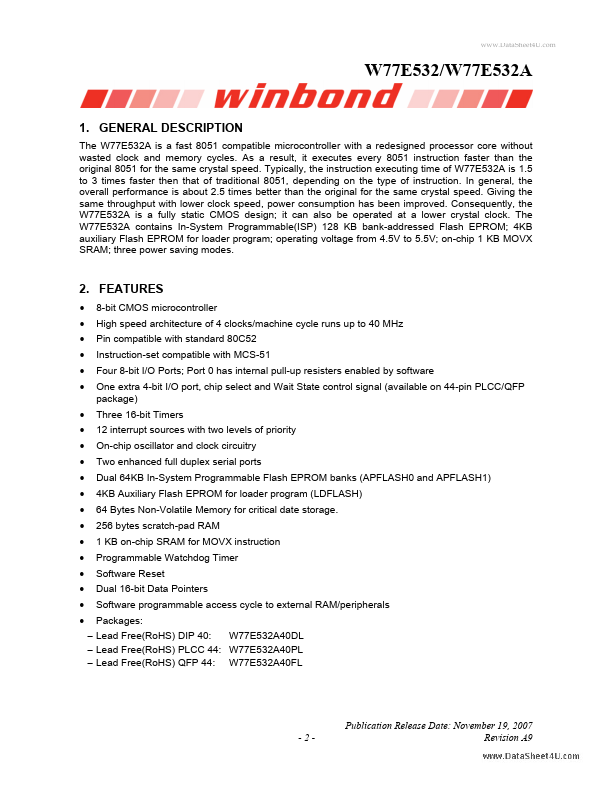

GENERAL DESCRIPTION
As a result, it executes every 8051 instruction faster than the original 8051 for the same crystal speed. Typically, the instruction executing time of W77E532A is 1.5 to 3 times faster then that of traditional 8051, depending on the type of instruction. In general, the overall performance is about 2.5 times better than the original for the same crystal speed. Giving the same throughput with lower clock speed, power consumption has been improved. Consequently, the W77E532A is a fully static CMOS design; it can also be operated at a lower crystal clock. The W77E532A contains In-System Programmable(ISP) 128 KB bank-addressed Flash EPROM; 4KB auxiliary Flash EPROM for loader program; operating voltage from 4.5V to 5.5V; on-chip 1 KB MOVX SRAM; three power saving modes. 2.FEATURES
● 8-bit CMOS microcontroller● High speed architecture of 4 clocks/machine cycle runs up to 40 MHz
● Pin compatible with standard 80C52
● Instruction-set compatible with MCS-51
● Four 8-bit I/...
