W78E58B - 8 BIT MICROCONTROLLER

Datasheet Summary

Description

The W78E58B is an 8-bit microcontroller which has an in-system programmable Flash EPROM for firmware updating.

The instruction set of the W78E58B is fully compatible with the standard 8052.

📥 Download Datasheet

Datasheet preview – W78E58B

Datasheet Details

Part number W78E58B
Manufacturer Winbond
File Size 367.16 KB
Description 8 BIT MICROCONTROLLER
Datasheet download datasheet W78E58B Datasheet
Additional preview pages of the W78E58B datasheet.

📁 Similar Datasheet

  • W78E516D - 8-BIT MICROCONTROLLER (nuvoton)
  • W78E051B - 8-Bit Microcontroller (Winbond Electronics)
  • W78E051D - 8-BIT MICROCONTROLLER (Nuvoton)
  • W78E052C - 8-Bit Microcontroller (Winbond Electronics)
  • W78E052D - 8-BIT MICROCONTROLLER (Nuvoton)
  • W78E054D - 8-BIT MICROCONTROLLER (Nuvoton)
  • W78E058D - 8-BIT MICROCONTROLLER (nuvoton)
  • W78E858 - 8-BIT MICROCONTROLLER (nuvoton)
  • W78ERD2 - 8-BIT MICROCONTROLLER (nuvoton)
  • W78ERD2A - 8-BIT MICROCONTROLLER (nuvoton)
Other Datasheets by Winbond

Full PDF Text Transcription

Click to expand full text

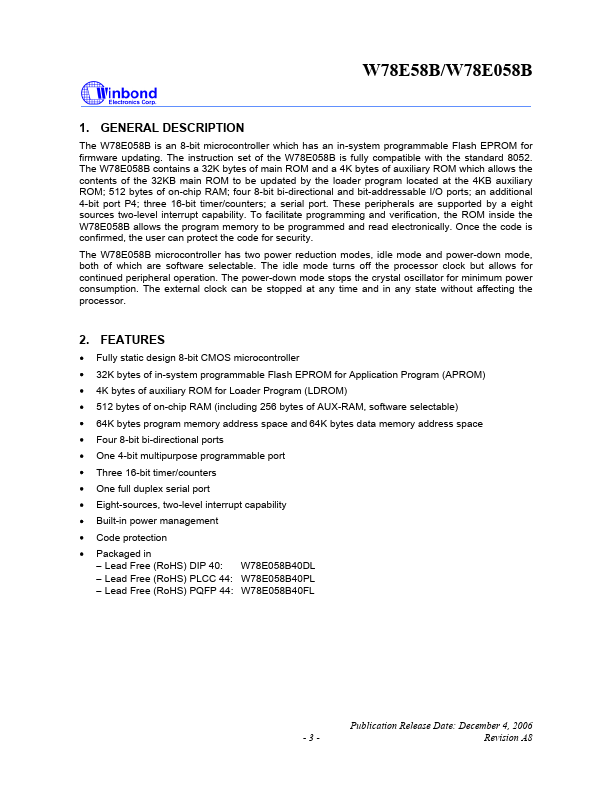

W78E58B 8-BIT MICROCONTROLLER 1. GENERAL DESCRIPTION The W78E58B is an 8-bit microcontroller which has an in-system programmable Flash EPROM for firmware updating. The instruction set of the W78E58B is fully compatible with the standard 8052. The W78E58B contains a 32K bytes of main ROM and a 4K bytes of auxiliary ROM which allows the contents of the 32KB main ROM to be updated by the loader program located at the 4KB auxiliary ROM; 512 bytes of on-chip RAM; four 8-bit bi-directional and bit-addressable I/O ports; an additional 4bit port P4; three 16-bit timer/counters; a serial port. These peripherals are supported by a eight sources two-level interrupt capability.
