Winbond Electronics Corporation W78E65

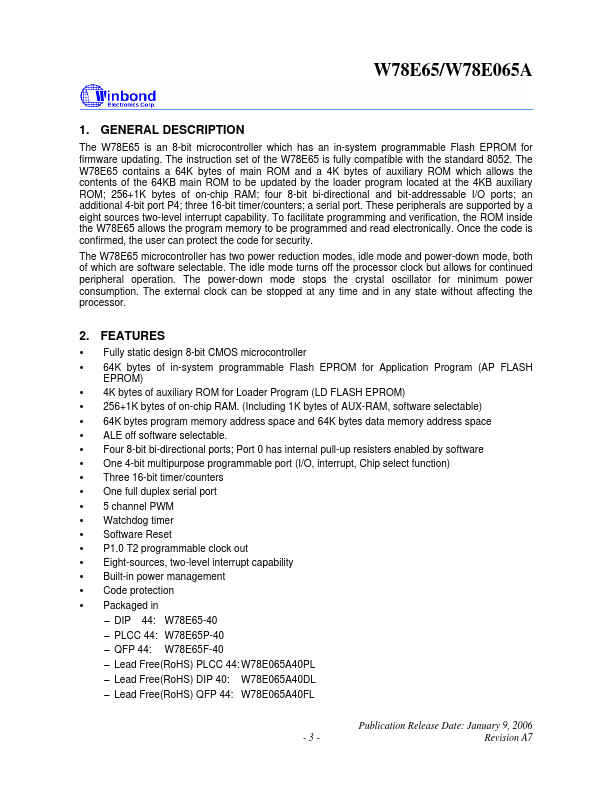

The W78E65 is an 8-bit microcontroller which has an in-system programmable Flash EPROM for firmware updating. The instruction set of the W78E65 is fully compatible with the standard 8052. The W78E65 contains a 64K bytes of main ROM and a 4K bytes of auxiliary ROM which allows the contents of the 64KB main ROM to be updated by the loader program located at the 4KB auxiliary ROM; 256+1K bytes of on-chip RAM; four 8-bit bi-directional and bit-addressable I/O ports; an additional 4-bit port P4; three 16-bit timer/counters; a serial port.

Part No.	W78E65
Datasheet	W78E65 Download
Manufacturer	Winbond Electronics Corporation
Description	8-Bit Microcontroller
Buy	Stock & Price

GENERAL DESCRIPTION

These peripherals are supported by a eight sources two-level interrupt capability. To facilitate programming and verification, the ROM inside the W78E65 allows the program memory to be programmed and read electronically. Once the code is confirmed, the user can protect the code for security. The W78E65 microcontroller has two power reduction modes, idle mode and power-down mode, both of which are software selectable. The idle mode turns off the processor clock but allows for continued peripheral operation. The power-down mode stops the crystal oscillator for minimum power consumption. The external clock can be stopped at any time and in any state without affecting the processor. 2.

FEATURES

y Fully static design 8-bit CMOS microcontroller y 64K bytes of in-system programmable Flash EPROM for Application Program (AP FLASH EPROM) y 4K bytes of auxiliary ROM for Loader Program (LD FLASH EPROM) y 256+1K bytes of on-chip RAM. (Including 1K bytes of AUX-RAM, software sele...
