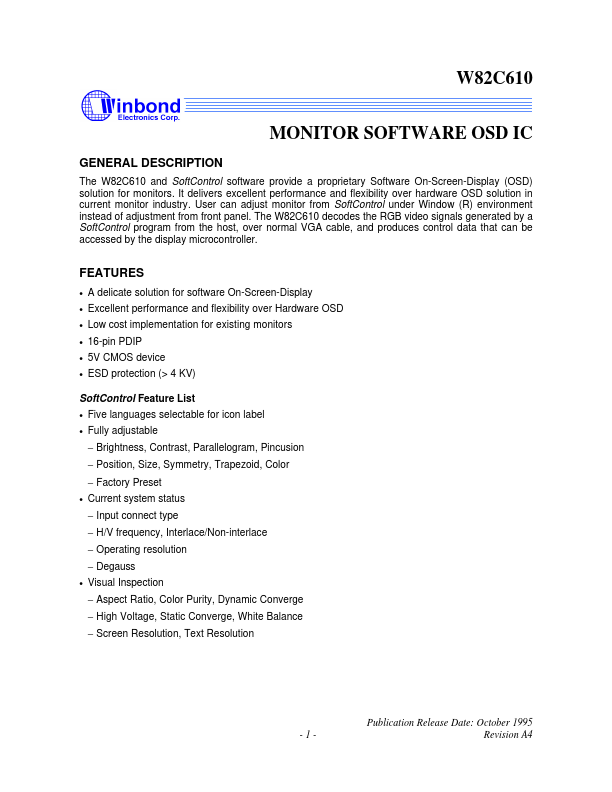

Winbond Electronics Corporation W82C610
The W82C610 and SoftControl software provide a proprietary Software On-Screen-Display (OSD) solution for monitors. It delivers excellent performance and flexibility over hardware OSD solution in current monitor industry. The W82C610 decodes the RGB video signals generated by a SoftControl program from the host, over normal VGA cable, and produces control data that can be accessed by the display microcontroller.| Part No. | W82C610 |
|---|---|
| Datasheet | W82C610 Download |
| Manufacturer |  Winbond Electronics Corporation |
| Description | MONITOR SOFTWARE OSD IC |
| Buy | Stock & Price |
GENERAL DESCRIPTION
User can adjust monitor from SoftControl under Window (R) environment instead of adjustment from front panel.FEATURES
● A delicate solution for software On-Screen-Display● Excellent performance and flexibility over Hardware OSD
● Low cost implementation for existing monitors
● 16-pin PDIP
● 5V CMOS device
● ESD protection (> 4 KV) SoftControl Feature List
● Five languages selectable for icon label
● Fully adjustable − Brightness, Contrast, Parallelogram, Pincusion − Position, Size, Symmetry, Trapezoid, Color − Factory Preset
● Current system status − Input connect type − H/V frequency, Interlace/Non-interlace − Operating resolution − Degauss
● Visual Inspection − Aspect Ratio, Color Purity, Dynamic Converge − High Voltage, Static Converge, White Balance − Screen Resolution, Text Resolution Publication Release Date: October 1995 -1- Revision A4 PIN CONFIGURATION RDATA 1 GDATA 2 BDATA 3 LEVEL 4 RD 5 INT 6 IDB3 7 GND 8 16 VCC 15 ODB0 14 ODB1 13 ODB2 12 ODB3 11 IDB0 10 IDB1 9 IDB2 W82C610 PIN
DESCRIPTION
NO.
