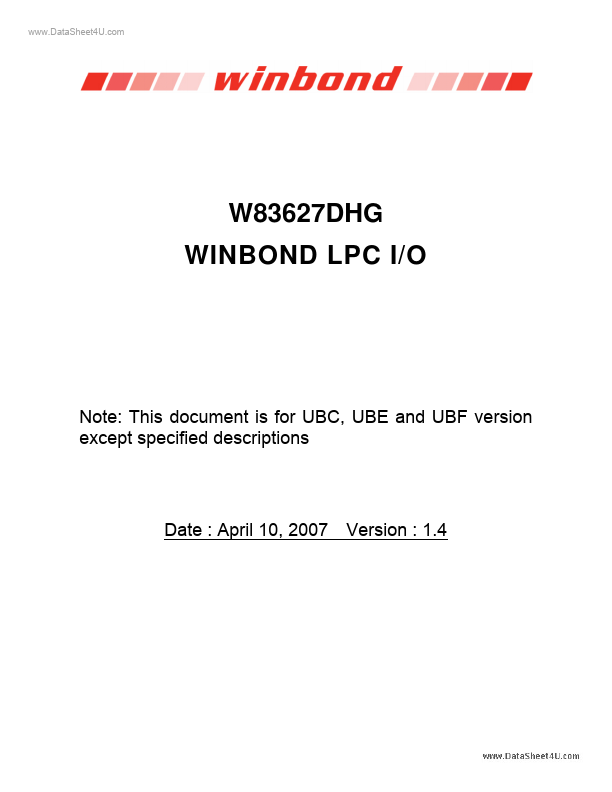

W83627DHG WINBOND LPC I/O
Note: This document is for UBC, UBE and UBF version except specified descriptions
Date : April 10, 2007
Version : 1.4
W83627DHG
Data Sheet Revision History
PAGES DATES VERSION WEB VERSION MAIN CONTENTS
1 2
N.A. N.A.
12/15/2005 02/22/2006
0.1 0.2
N.A. N.A.
1. 1. 1. 2. 3. 4. 5. 6. 7. 1. 2. 3. 4.
First published version. Add descriptions of the registers, functions,, AC/DC timing, and top marking Revise Table 8.1 and the timing chart of section 10.3.1 Add registers for AMDSI at LDB, CRF5h,CRF6h and F7h(Bank1) Swap LDB, CRF2h bit 0 and bit 1. Modify the default values for LDA, CRFEh Modify the descriptions of LD9, CR30h bit 0 and CRF7h bit 4.
