W83781D - H/W Monitoring IC

Winbond

Datasheet Details

Part number	W83781D
Manufacturer	Winbond
File Size	658.06 KB
Description	H/W Monitoring IC
Datasheet	W83781D Datasheet

Other Datasheets by Winbond

Part Number	Description
W83782D	MONITORING IC
W83783G	Monitoring
W83783S	MONITORING IC
W83787F	Power I/O Controller
W83787IF	I/O WITH SERIAL-INFRARED SUPPORT
W83757	SUPER I/O CHIP
W83759A	ADVANCED VL-IDE DISK CONTROLLER
W83777F	Power I/O Controller
W83791D	H/W Monitoring IC
W83791G	H/W Monitoring IC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

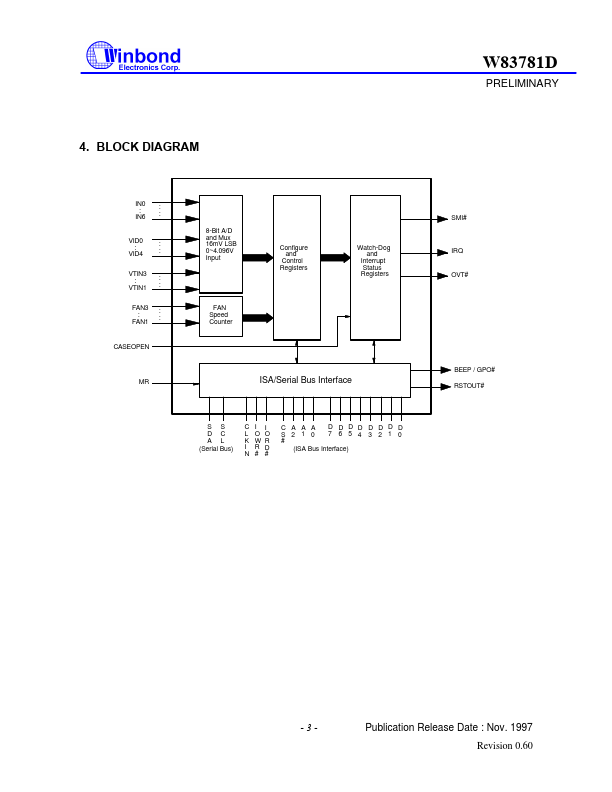

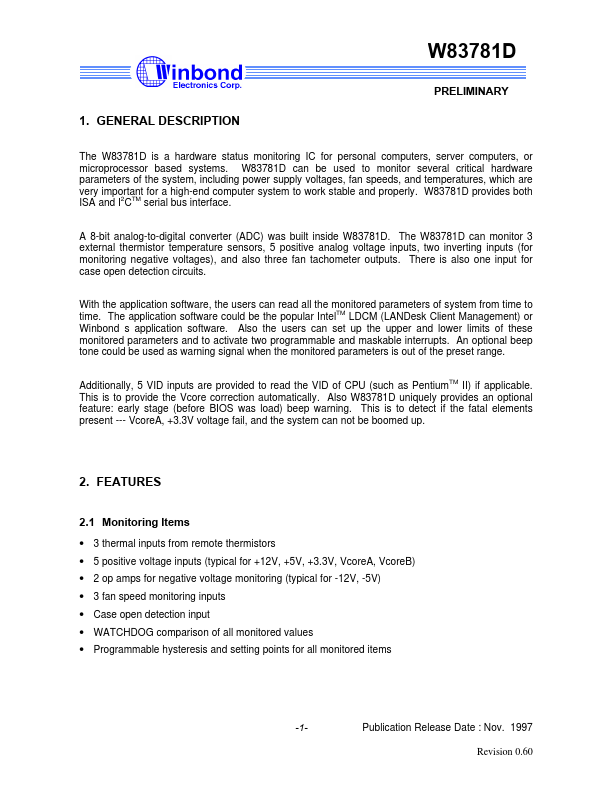

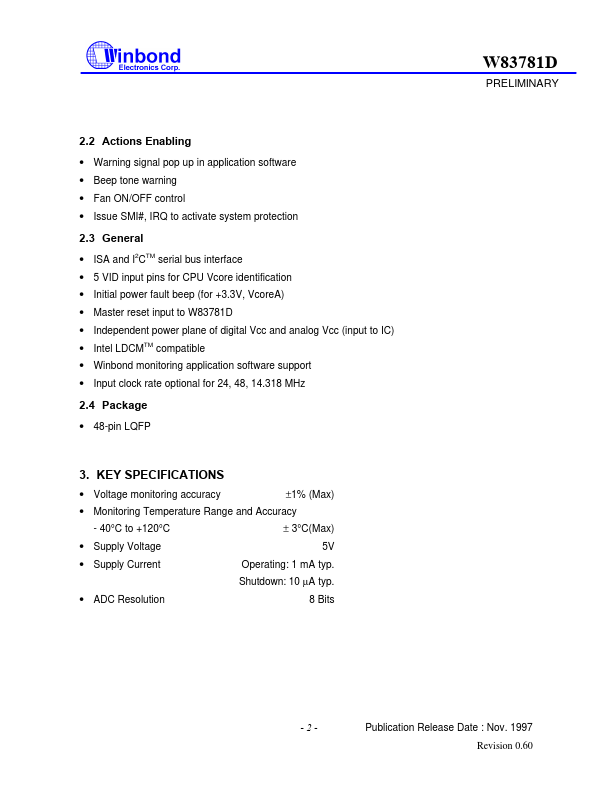

W83781D Winbond H/W Monitoring IC W83781D Data Sheet Revision History Pages Dates Version Version on Web Main Contents 1 n.a. n.a. All the version before 0.60 are internal use. 2 n.a. 11/07/97 0.60 3 5 11/19/97 0.61 4 4 12/17/97 0.62 5 6 5 33 1/13/98 0.63 37 40 43 48 6 n.a. First published. n.a. Pin 18-20: I/O Type ¡÷ I/O12ts n.a. Pin18-20:I/O Type ¡÷ Fan 1, Pin18:Fan1¡÷ Fan3 Pin23: I/O Type ¡÷ OUT8t Pin42: I/O Type ¡÷ OUT12 n.a. 8.24 index 55h(Bank 0) ¡÷ Winbond Test Register 8.30 index 52h(Bank 1) bit2 ¡÷ Reserve 8.37 index 52h(Bank 2) bit2 ¡÷ Reserve 9.2 I/O 12ts TTL DC Characteristics Package QFT ¡÷ LQFP 7 8 9 10 Please note that all data and specifications are subject to change without notice.
