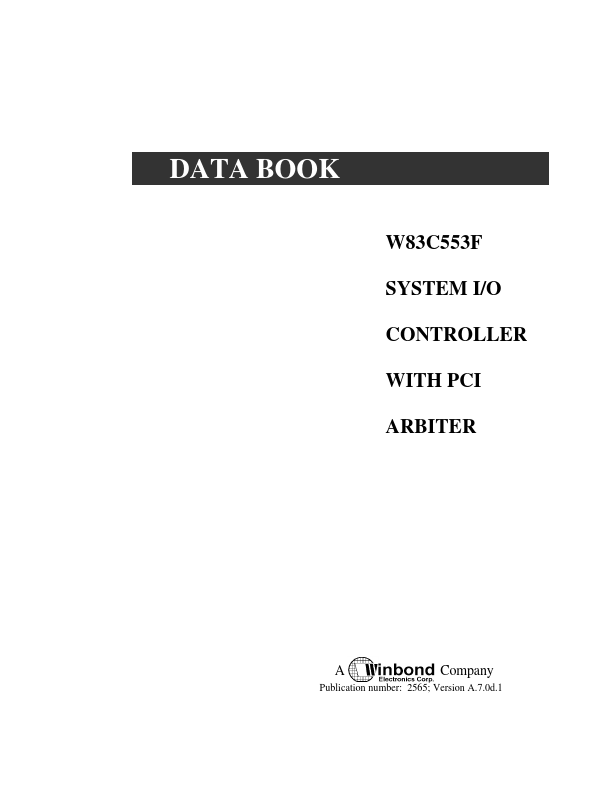

Winbond Electronics Corporation W83C553F
The W83C553F Enhanced System I/O (SIO) Controller with PCI Arbiter is a highly integrated device intended for use in any Peripheral Component Interconnect (PCI) system, supporting x86 or PowerPC (non-x86) type microprocessors. It supports all PCI 2.1 compliant CPU bridge implementations and directly interfaces with PCI and ISA industry standard buses, including two direct drive IDE channels supporting up to four peripherals. The W83C553F is a universal PCI device which can be used with many CPU-to-PCI bridge solution.| Part No. | W83C553F |
|---|---|
| Datasheet | W83C553F Download |
| Manufacturer |  Winbond Electronics Corporation |
| Description | SYSTEM I/O CONTROLLER |
| Buy | Stock & Price |
FEATURES
High Integration PCI-ISA solution● Optimized for lowest system cost
● Complies with PCI Revision 2.0 specification
● Universal PCI device supporting x86 and PowerPC (non-x86) modes of operation Nand tree on most signal pins to facilitate board level testing in PCB manufacturing environment Integrated PCI Bus Master IDE controller
● Dual channel Bus Master IDE for up to 4 peripherals, including hard drives, ATAPI (IDE) CD-ROMs, tapes, etc.
● Multi-threading capability allows two simultaneous I/O processes
● Independent IDE Timing registers allow fast/slow devices on the same cable
● Two independent DMA channels for Bus Master scatter/gather DMA transfers across the PCI bus
● Large 64 byte DMA FIFO for zero wait state PCI burst transfers
● Support for multiword DMA Mode 1 (13.3 MB/s), Mode 2 (16.6 MB/s) IDE drives
● PIO IDE support for Modes 0-4 disks
● Edge rate controlled outputs directly drive IDE headers
● Four byte pre-fetch and posted write buffers
● DMA channels can be r...
