Winbond Electronics Corporation W88112F

The W88112F supports accelerated error correction/detection to improve system performance. * The W88112F supports automatic target header search, automatic header comparison, and decoder interrupt status collection to reduce firmware overhead.

Part No.	W88112F
Datasheet	W88112F Download
Manufacturer	Winbond Electronics Corporation
Description	ATAPI CD-ROM DECODER & CONTROLLER
Buy	Stock & Price

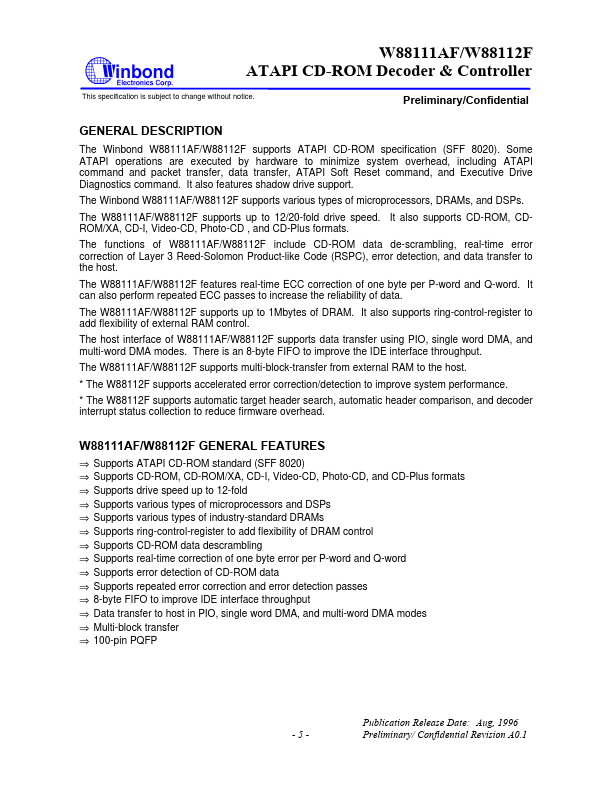

GENERAL DESCRIPTION

The Winbond W88111AF/W88112F supports ATAPI CD-ROM specification (SFF 8020). Some ATAPI operations are executed by hardware to minimize system overhead, including ATAPI command and packet transfer, data transfer, ATAPI Soft Reset command, and Executive Drive Diagnostics command. It also features shadow drive support. The Winbond W88111AF/W88112F supports various types of microprocessors, DRAMs, and DSPs. The W88111AF/W88112F supports up to 12/20-fold drive speed. It also supports CD-ROM, CDROM/XA, CD-I, Video-CD, Photo-CD , and CD-Plus formats. The functions of W88111AF/W88112F include CD-ROM data de-scrambling, real-time error correction of Layer 3 Reed-Solomon Product-like Code (RSPC), error detection, and data transfer to the host. The W88111AF/W88112F features real-time ECC correction of one byte per P-word and Q-word. It can also perform repeated ECC passes to increase the reliability of data. The W88111AF/W88112F supports up to 1Mbytes of DRAM. It also supports ring-control-register to add flexibility of external RAM control.
