W9464G6JH Datasheet

Part: W9464G6JH
Description: 1M X 4 BANKS X 16 BITS DDR SDRAM
Manufacturer: Winbond
Size: 955.18 KB

Winbond

W9464G6JH

W9464G6JH is 1M X 4 BANKS X 16 BITS DDR SDRAM manufactured by Winbond.

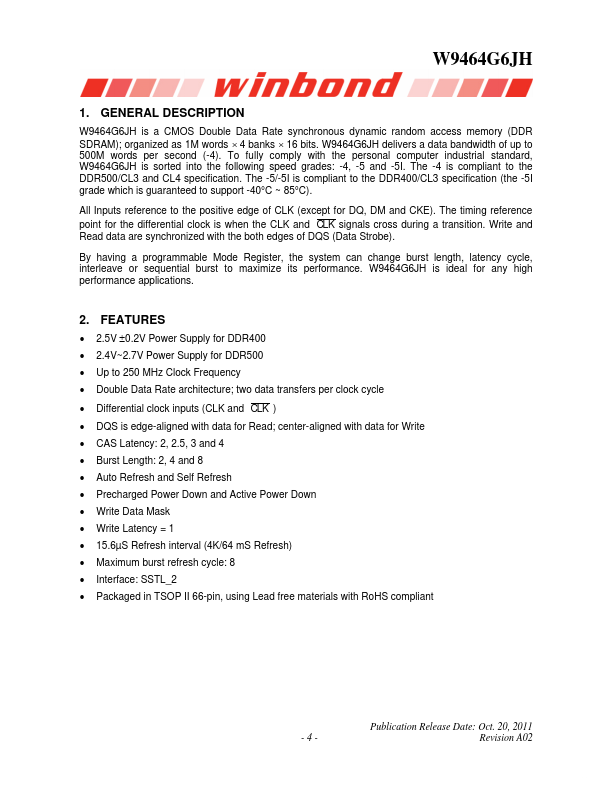

.Data Sheet.co.kr W9464G6JH 1M  4 BANKS  16 BITS DDR SDRAM Table of Contents1. 2. 3. 4. 5. 6. 7. GENERAL DESCRIPTION ......................................................................................................... 4 Features ................................................................................................................................. 4 KEY PARAMETERS ................................................................................................................... 5 PIN CONFIGURATION ............................................................................................................... 6 PIN DESCRIPTION..................................................................................................................... 7 BLOCK DIAGRAM ...................................................................................................................... 8 FUNCTIONAL DESCRIPTION.................................................................................................... 9 7.1 7.2 Power Up Sequence ....................................................................................................... 9 mand Function ...................................................................................................... 10 7.2.1 Bank Activate mand ........................................................................... 10 7.2.2 7.2.3 7.2.4 7.2.5 7.2.6 7.2.7 7.2.8 7.2.9 7.2.10 7.2.11 7.2.12 7.2.13 7.2.14 7.2.15 7.2.16 7.3 7.4 7.5 7.6 7.7 7.8 7.9 7.10 Bank Precharge mand........................................................................ 10 Precharge All mand ............................................................................ 10 Write mand ......................................................................................... 10 Write with Auto-precharge mand ........................................................ 10 Read mand ..................................................................
