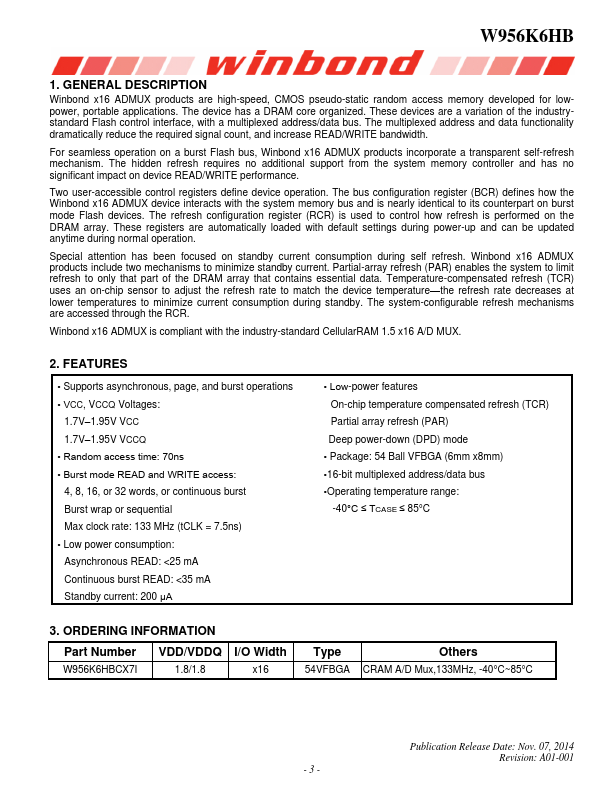

W956K6HB Description
Winbond x16 ADMUX products are high-speed, CMOS pseudo-static random access memory developed for lowpower, portable applications. The device has a DRAM core organized. These devices are a variation of the industrystandard Flash control interface, with a multiplexed address/data bus.
W956K6HB Key Features
- Supports asynchronous, page, and burst operations
- Low-power features
- VCC, VCCQ Voltages
- Random access time: 70ns
- Package: 54 Ball VFBGA (6mm x8mm)
- Burst mode READ and WRITE access
- 16-bit multiplexed address/data bus
- Operating temperature range
- 40°C ≤ TCASE ≤ 85°C
- Low power consumption
W956K6HB Applications
- Supports asynchronous, page, and burst operations
- Low-power features
