Description

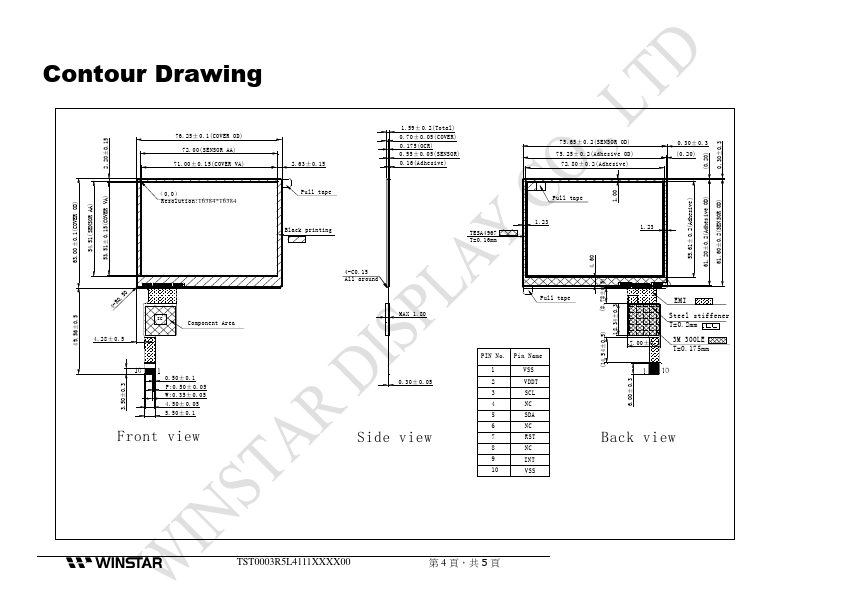

Ground --- Power supply I/O I2C clock signal --- No Connection I/O I2C data signal --- No Connection I External reset signal, active low --- No Connection Interrupt signal, active low, asserted to request O Host start a new transcation --- Ground IC Specification NO. 1 2 3 4 Item Driver IC Detect Points Interface Power Supply Specifications ILI2130 5 I2C 3.3V FW：FN035IGRGXX005A_ILI2130_V01_20210322.hex Test config:FN035IGRGXX005A_ILI2130_TP_Test_MP.ini Version: 0x07.0x00.0x00.0x00.0x00.0x35.0x5A.0x01 TST0003R5L4111XXXX00 第 3 頁，共 5 頁 Contour Drawing 63.00±0.1(COVER OD) 54.51(SENSOR AA) 53.51±0.15(COVER VA) 49.56±0.5 4-R0.50 2.20±0.15 76.25±0.1(COVER OD) 72.00(SENSOR AA) 71.00±0.15(COVER VA) （ 0,0） Resolution:16384*16384 4.28± 0.5 IC ponent Area 3.50±0.3 0.50±0.1 P:0.50± 0.05 W:0.35±0.05 4.50± 0.05 5.50±0.1 Front view (0.20) 0.30±0.3 2.63± 0.15 Pull tape Black printing 1.59± 0.2(Total) 0.70± 0.05(COVER) 0.175(OCR) 0.55± 0.05(SENSOR) 0.16(Adhesive) TESA4967 T=0.16mm 75.65±0.2(SENSOR OD) 75.25±0.2(Adhesive OD) 72.80± 0.2(Adhesive) 0.30±0.3 (0.20) 1.00 Pull tape 1.23 1.23 55.61±0.2(Adhesive) 61.20±0.2(Adhesive OD) 61.60±0.2(SENSOR OD) 4.60 4-C0.15 All around MAX 1.80 0.30± 0.05 Side view (8.78±0.5) Pull tape PIN No.

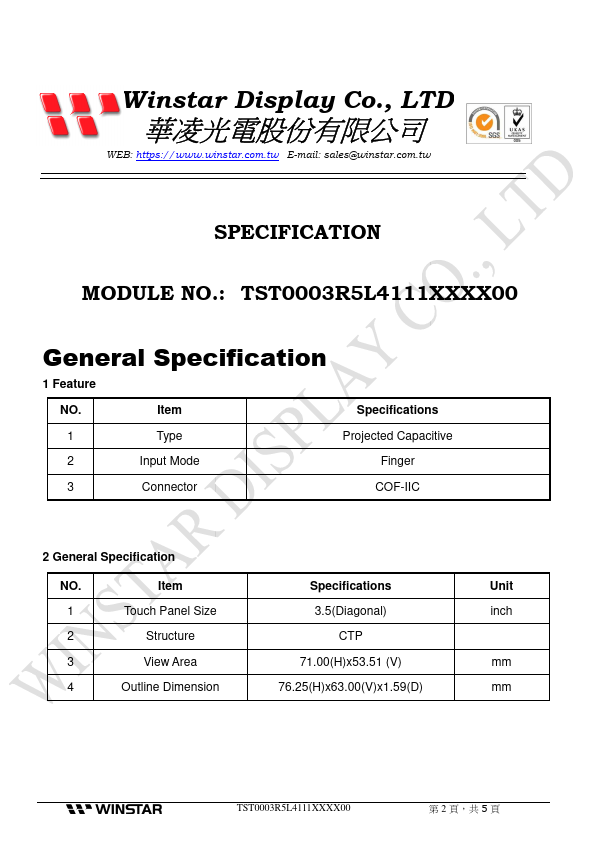

Key Features
- Item Specifications 1 Type Projected Capacitive 2 Input Mode Finger 3 Connector COF-IIC 2 General Specification NO
- Symbol 1 VSS 2 VDDT 3 SCL 4 NC 5 SDA 6 NC 7 RST 8 NC 9 INT 10 VSS I/O
