OLED SPECIFICATION
Model No:
- A

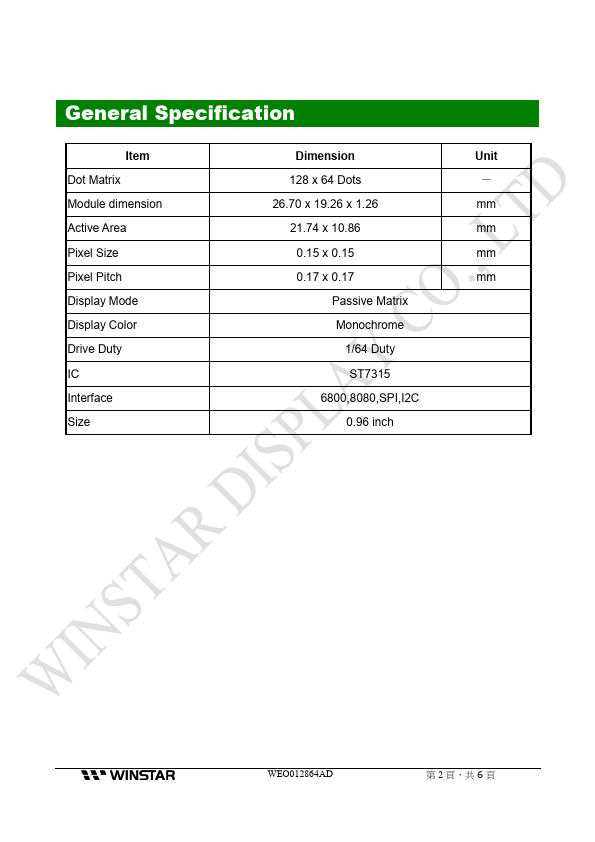

General Specification
Item Dot Matrix Module dimension Active Area Pixel Size Pixel Pitch Display Mode Display Color Drive Duty IC Interface Size
Dimension
Unit
128 x 64 Dots
－
26.70 x 19.26 x 1.26 mm
21.74 x 10.86 mm
0.15 x 0.15 mm
0.17 x 0.17 mm
Passive Matrix
Monochrome
1/64 Duty
ST7315
6800,8080,SPI,I2C
0.96 inch
第 2 頁，共 6 頁
(31.26)

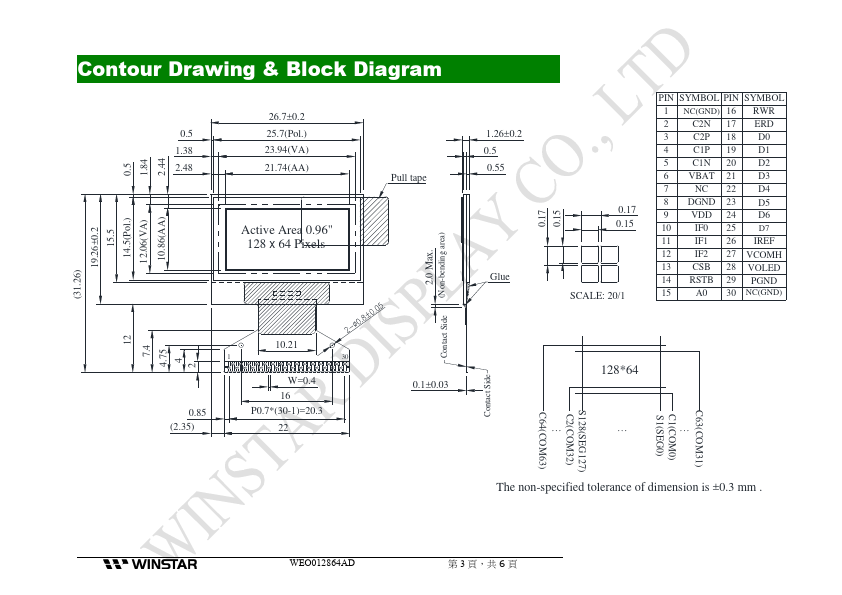

Contour Drawing & Block Diagram
26.7±0.2
0.5
25.7(Pol.)
1.38
23.94(VA)
2.48
21.74(AA)
Pull...
