Datasheet Summary
OLED SPECIFICATION
Model No:
- APPROVA
NS AN
)
General Specification
Item Dot Matrix Module dimension Active Area Pixel Size Pixel Pitch Display Mode Display Color Drive Duty
IC Interface
Size
Dimension
Unit
128 x 32 Dots
－
66.5 × 35.0 × 9 Max. mm
55.016 × 13.096 mm
0.406 × 0.386 mm
0.43 × 0.41 mm
Passive Matrix
Monochrome
1/32 Duty
SH1106
6800,8080,4-Wire SPI,I2C
2.23 inch
WEP012832NWPP3N00000
第 2 頁，共 4 頁
4.35
25.2±0.2 (Frame)
35±0.5

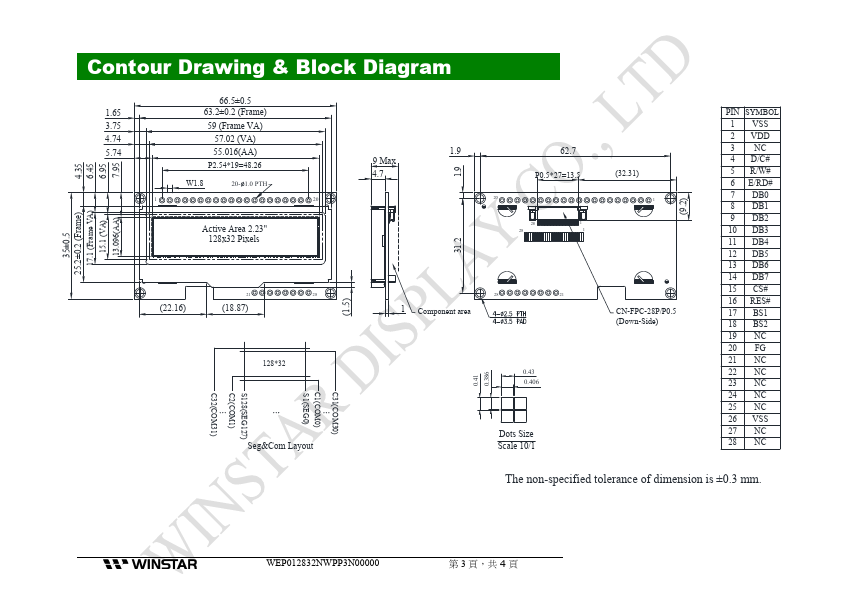

Contour Drawing & Block Diagram
66.5±0.5...
