Datasheet Summary
Winstar Display Co., LTD
華凌光電股份有限公司
WEB: https://.winstar..tw E-mail: sales@winstar..tw

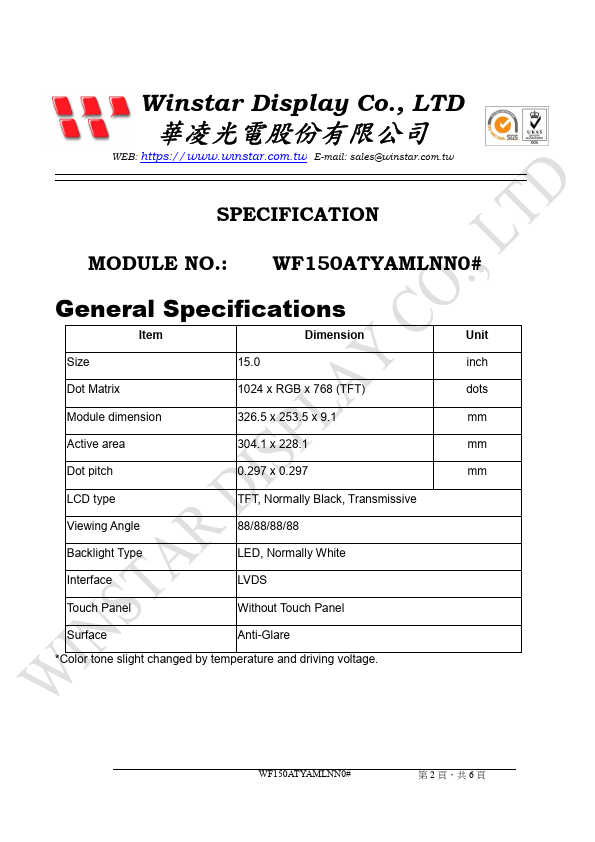

SPECIFICATION
MODULE NO.: WF150ATYAMLNN0#
General Specifications
Item
Dimension
Unit
Size
15.0 inch
Dot Matrix
1024 x RGB x 768 (TFT) dots
Module dimension
326.5 x 253.5 x 9.1 mm
Active area
304.1 x 228.1 mm
Dot pitch
0.297 x 0.297 mm
LCD type
TFT, Normally Black, Transmissive
Viewing Angle
88/88/88/88
Backlight Type
LED, Normally White
Interface
LVDS
Touch Panel
Without Touch...
