WF32DTLAJDNN0
WF32DTLAJDNN0 is TFT Display manufactured by WINSTAR Display.
Winstar Display Co., LTD
華凌光電股份有限公司
WEB: https://.winstar..tw E-mail: sales@winstar..tw

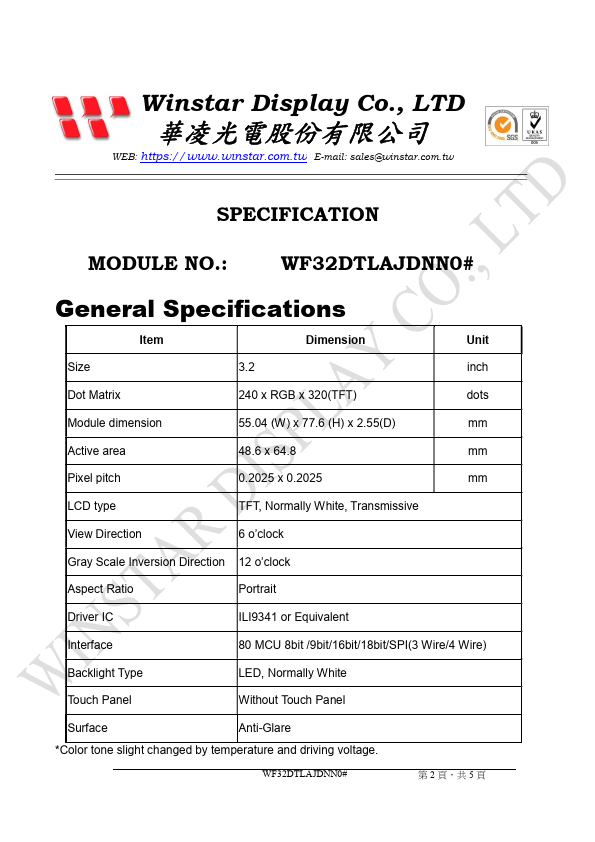

SPECIFICATION
MODULE NO.:
WF32DTLAJDNN0#
General Specifications
Item
Dimension
Unit
Size
3.2 inch
Dot Matrix
240 x RGB x 320(TFT) dots
Module dimension
55.04 (W) x 77.6 (H) x 2.55(D) mm
Active area
48.6 x 64.8 mm
Pixel pitch
0.2025 x 0.2025 mm
LCD type
TFT, Normally White, Transmissive
View Direction
6 o’clock
Gray Scale Inversion Direction 12 o’clock
Aspect Ratio
Portrait
Driver IC
ILI9341 or Equivalent

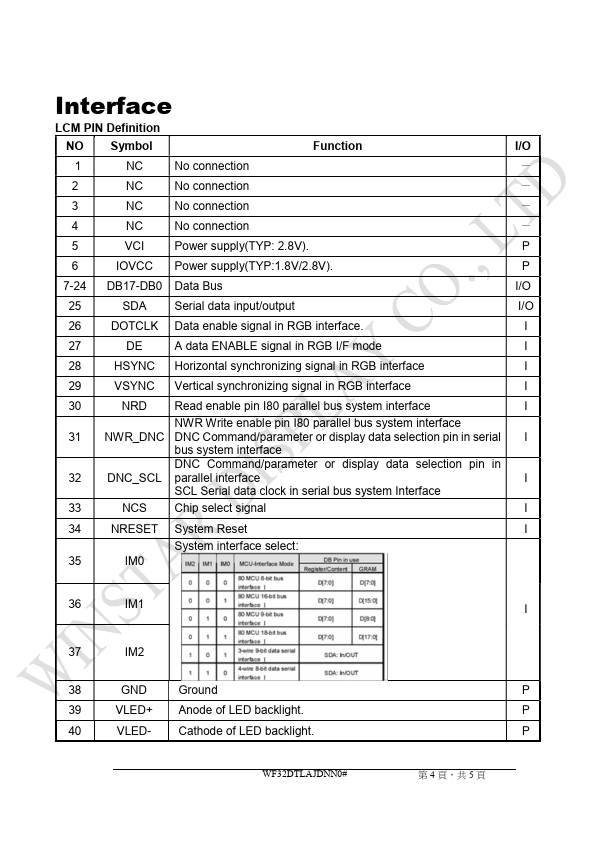

Interface...
