WF35RTIACDNNB Description

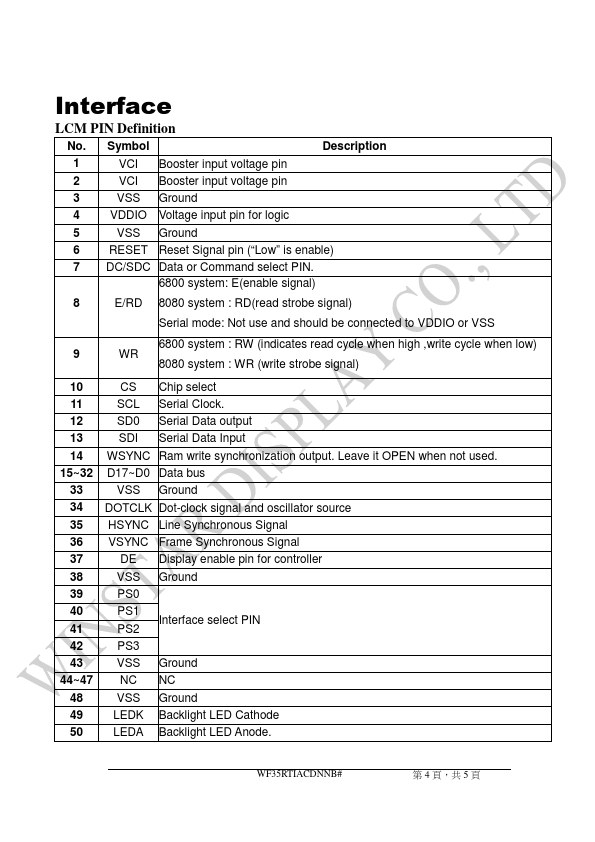

1 VCI Booster input voltage pin 2 VCI Booster input voltage pin 3 VSS Ground 4 VDDIO Voltage input pin for logic 5 VSS Ground 6 RESET Reset Signal pin (“Low” is enable) 7 DC/SDC Data or mand select PIN. E(enable signal) 8 E/RD 8080 system : RD(read strobe signal) Serial mode:.
