ABSOLUTE MAXIMUM RATINGS
5.ELECTRICAL CHARACTERISTICS

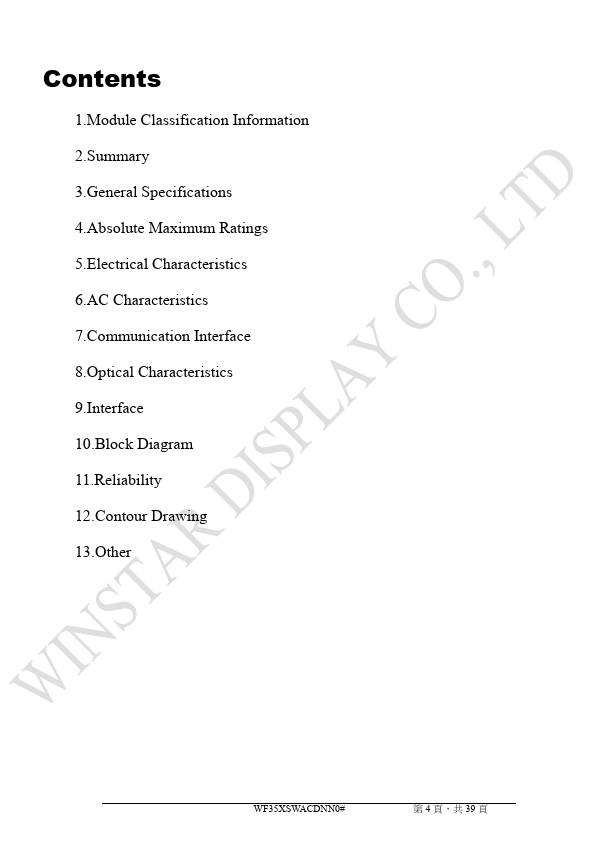

6.AC Characteristics 7.Communication Interface 8.Optical Characteristics 9.Interface 10.Block Diagram 11.Reliability 12.Contour Drawing 13.Other WF35XSWACDNN0# 第 4 頁，共 39 頁 1.Module Classification Information W F 35 X S W A C D N N 0 # ○1 ○2 ○3 ○4 ○5 ○6 ○7 ○8 ○9 ○10 ○11 ○12 ○13 Brand：WINSTAR DISPLAY CORPORATION Display Type：F→TFT Type, J→Custom TFT Display Size：3.5” TFT Model serials no. Backlight Type： F→CCFL, White S→LED, High Light White T→LED, White Z→Nichia LED, White LCD Polarize Type/ Temperature range/ Gray Scale Inversion Direction A→Transmissive, N.T, IPS TFT C→Transmissive, N. T, 6:00 ; F→Transmissive, N.T,12:00 ; I→Transmissive, W. T, 6:00 K→Transflective, W.T,12:00 L→Transmissive, W.T,12:00 N→Transmissive, Super W.T, 6:00 Q→Transmissive, Super W.T, 12:00 R→Transmissive, Super W.T, O-TFT V→Transmissive, Super W.T, VA TFT W→Transmissive, Super W.T, IPS TFT X→Transmissive, W.T, VA TFT Y→Transmissive, W.T, IPS T...
