WF40ETWAA6MNN0
WF40ETWAA6MNN0 is LCD manufactured by WINSTAR Display.
Winstar Display Co., LTD
華凌光電股份有限公司
WEB: https://.winstar..tw E-mail: sales@winstar..tw

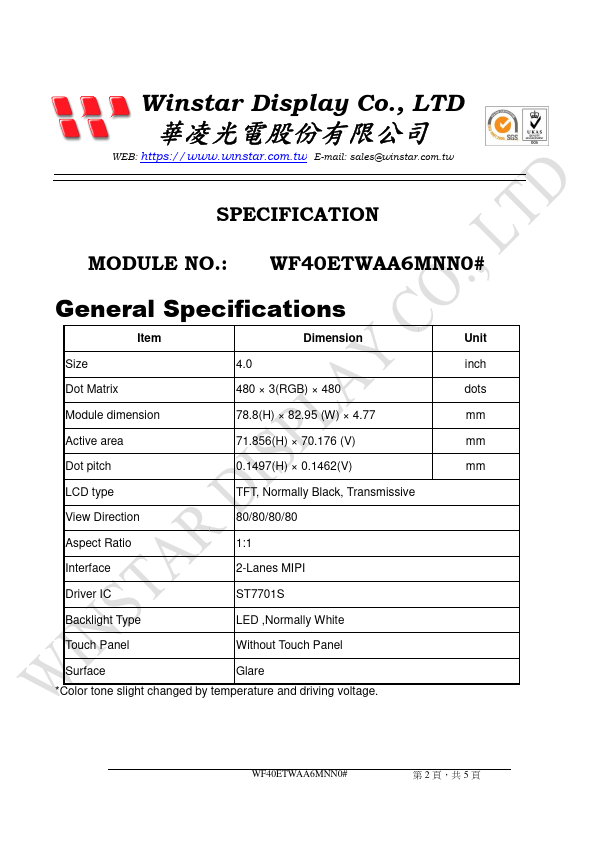

SPECIFICATION
MODULE NO.: WF40ETWAA6MNN0#
General Specifications
Item
Dimension
Unit
Size
4.0 inch
Dot Matrix
480 × 3(RGB) × 480 dots
Module dimension
78.8(H) × 82.95 (W) × 4.77 mm
Active area
71.856(H) × 70.176 (V) mm
Dot pitch
0.1497(H) × 0.1462(V) mm
LCD type
TFT, Normally Black, Transmissive
View Direction
80/80/80/80
Aspect Ratio
1:1
Interface
2-Lanes MIPI
Driver IC
ST7701S
Backlight...
