ABSOLUTE MAXIMUM RATINGS
5.ELECTRICAL CHARACTERISTICS

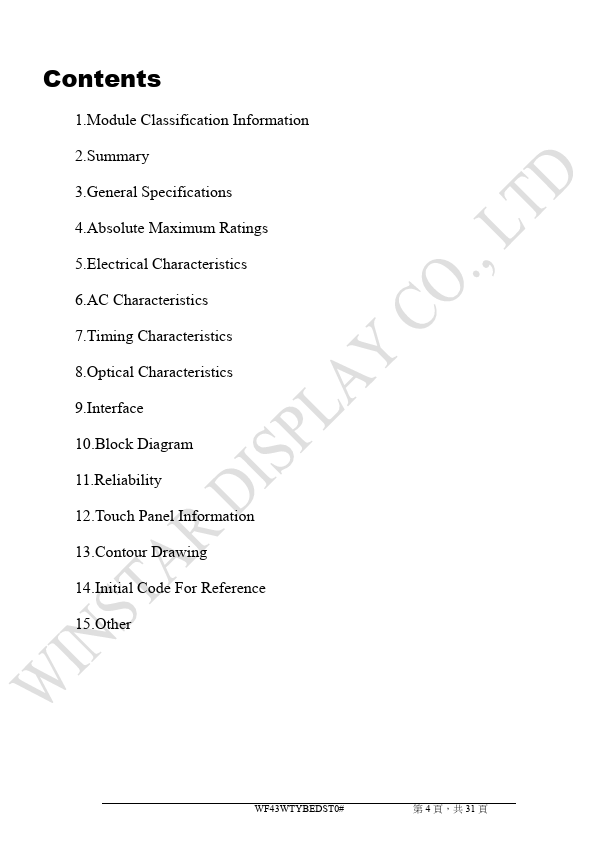

6.AC Characteristics 7.Timing Characteristics 8.Optical Characteristics 9.Interface 10.Block Diagram 11.Reliability 12.Touch Panel Information 13.Contour Drawing 14.Initial Code For Reference 15.Other WF43WTYBEDST0# 第 4 頁，共 31 頁 1.Module Classification Information W F 43 W T Y B E D S T 0 # ○1 ○2 ○3 ○4 ○5 ○6 ○7 ○8 ○9 ○10 ○11 ○12 ○13 Brand：WINSTAR DISPLAY CORPORATION Display Type：F→TFT Type, J→Custom TFT Display Size：4.3” TFT Model serials no. Backlight Type： T→LED, White S→LED, High Light White LCD Polarize Type/ Temperature range/ Gray Scale Inversion Direction B：TFT+FR+CONTROL BOARD Y→Transmissive, W.T, IPS TFT I→Transmissive, W. T, 6:00 L→Transmissive, W.T,12:00 Z→Transmissive, W.T, O-TFT Resolution: C:320240 E:480272 G: 800480 H :1024600 ○9 TFT type D: Digital panel ○10 Interface： R: Uart S: SPI-4 ( preservation) TS： N：Without TS T：RTP (preservation) ○11 N Without TS T Resistive touch panel C Capacitive touch pan...
