WF50DSYA3MNG10
WF50DSYA3MNG10 is LCD Modules manufactured by WINSTAR Display.
Winstar Display Co., LTD
華凌光電股份有限公司
WEB: https://.winstar..tw E-mail: sales@winstar..tw

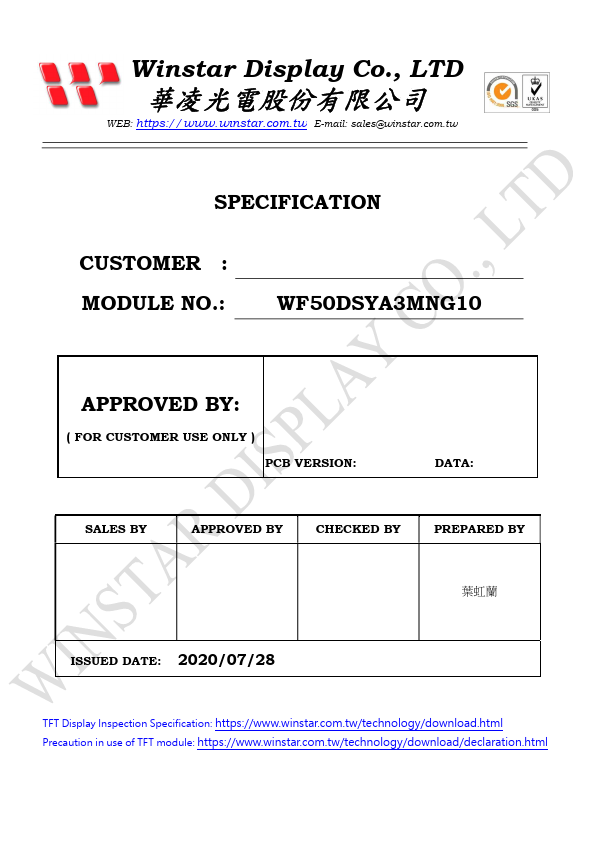

SPECIFICATION
CUSTOMER : MODULE NO.:
APPROVED BY:
( FOR CUSTOMER USE ONLY ) PCB VERSION:
DATA:
SALES BY
APPROVED BY
CHECKED BY
PREPARED BY
葉虹蘭
ISSUED DATE: 2020/07/28
TFT Display Inspection Specification: https://.winstar..tw/technology/download.html Precaution in use of TFT module: https://.winstar..tw/technology/download/declaration.html
Winstar Display Co., LTD MODLE NO： 華凌光電股份有限公司

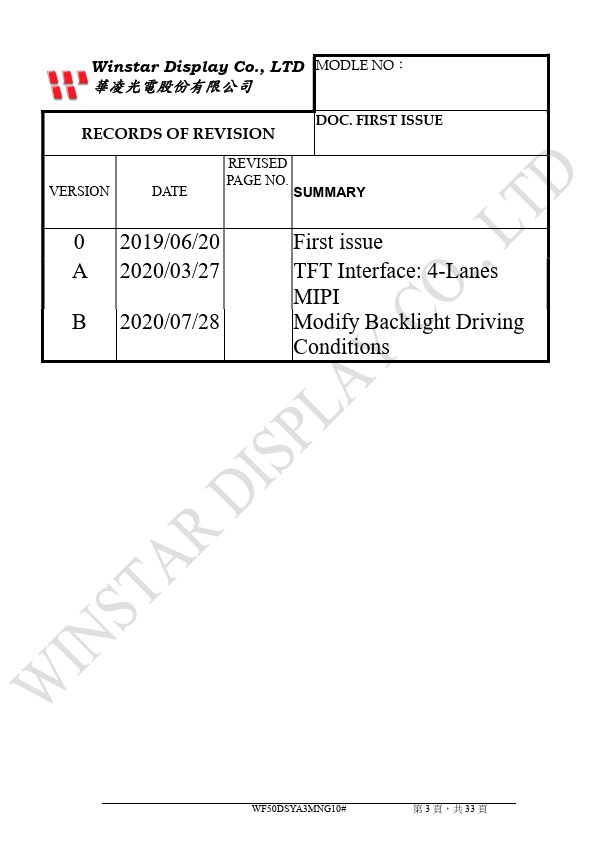

RECORDS OF REVISION
DOC. FIRST ISSUE
VERSION
DATE
REVISED PAGE NO.
SUMMARY
0 2019/06/20 A 2020/03/27
B 2020/07/28
First issue
TFT Interface: 4-Lanes MIPI Modify Backlight Driving Conditions
WF50DSYA3MNG10#
第 3 頁，共 33 頁

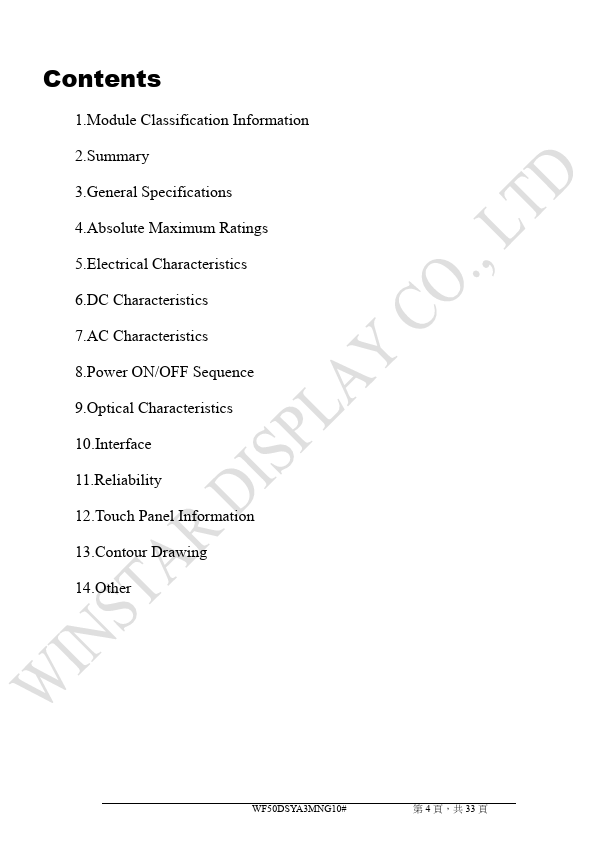

Contents
1.Module Classification Information 2.Summary 3.General Specifications...
