WINSTAR Display WF50FTYFGDBGA
LCD
| Part No. | WF50FTYFGDBGA |
|---|---|
| Datasheet | WF50FTYFGDBGA Download |
| Manufacturer | WINSTAR Display |
| Description | LCD |
| Buy | Stock & Price |

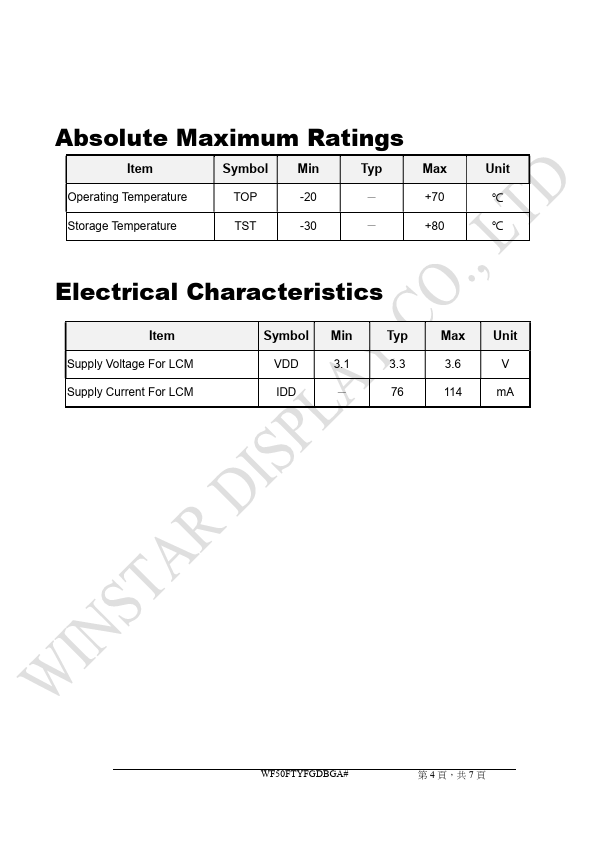

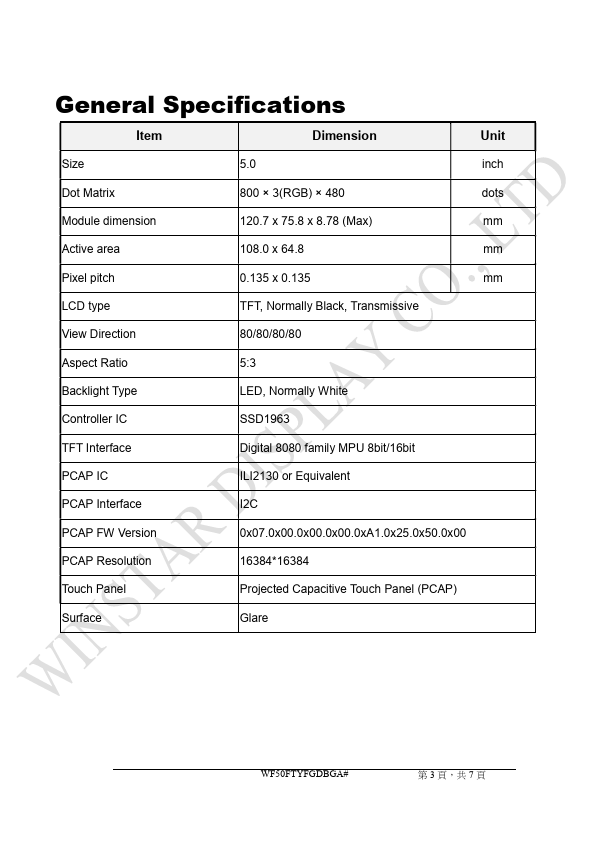

ABSOLUTE MAXIMUM RATINGS
Item Symbol Min Typ Max Unit Operating Temperature TOP -20 － +70 ℃ Storage Temperature TST -30 － +80 ℃ELECTRICAL CHARACTERISTICS
Item Supply Voltage For LCM Supply Current For LCM Symbol Min Typ Max Unit VDD 3.1 3.3 3.6 V IDD － 76 114 mA WF50FTYFGDBGA# 第 4 頁，共 7 頁 Interface Pin Symbol Function 1 GND System round pin of the IC. Connect to system ground. 2 VDD Power Supply : +3.3V 3 BL_E Backlight control signal , H: On \ L: Off 4 D/C Data/Command select 5 WR Write strobe signal 6 RD Read strobe signal 7 DB0 Data bus 8 DB1 Data bus 9 DB2 Data bus 10 DB3 Data bus 11 DB4 Data bus 12 DB5 Data bus 13 DB6 Data bus 14 DB7 Data bus 15 DB8 Data bus (When select 8bits mode, this pin is NC) 16 DB9 Data bus (When select 8bits mode, this pin is NC) 17 DB10 Data bus (When select 8bits mode, this pin is NC) 18 DB11 Data bus (When select 8bits mode, this pin is NC) 19 DB12 Data bus (When select 8bits mode, this pin is NC) 20 DB13 Data bus (When select 8bits mode, this pin is N...
