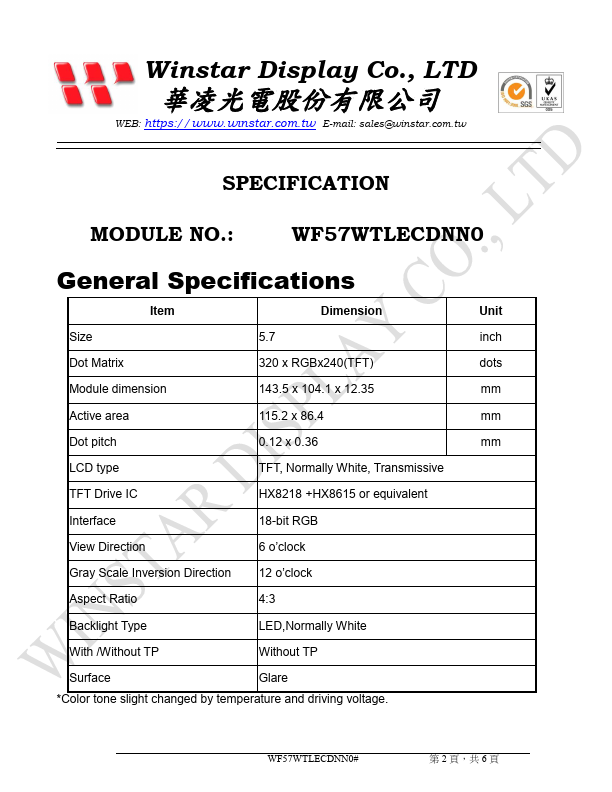

ABSOLUTE MAXIMUM RATINGS
Item Symbol Min Typ Max Unit Operating Temperature TOP -20 － +70 ℃ Storage Temperature TST -30 － +80 ℃ ELECTRICAL CHARACTERISTICS
1. Operating conditions: Item Symbol Condition Min Typ Max Supply Voltage For LCM VCC － 3.0 3.3 3.6 Supply Current For LCM ICC － － 110 170 Power Consumption — — — 363 612 Note 1 : This value is test for VCC=3.3V , Ta=25 ℃ only 2. LED driving conditions Parameter Symbol Min. Typ. Max. LED current - 140 - Power Consumption 1260 - 1470 LED voltage VBL+ 9.0 - 10.5 LED Life Time - 50,000 - Unit V mA mW Unit mA mW V Hr WF57WTLECDNN0# 第 3 頁，共 6 頁 Interface 1. LCM PIN Definition Pin Symbol Function 1 GND Ground 2 CK Clock signal for sampling each data signal(DCLK) 3 Hsync Horizontal synchronous signal 4 Vsync Vertical synchronous signal 5 GND Ground 6 R0 Red Data bit(LSB) 7 R1 Red Data bit 8 R2 Red Data bit 9 R3 Red Data bit 10 R4 Red Data bit 11 R5 Red Data bit(MSB) 12 GND Ground 13 G0 Green Data bit(LSB) 14 G1 Green Data bit 15 G2 Green Da...
