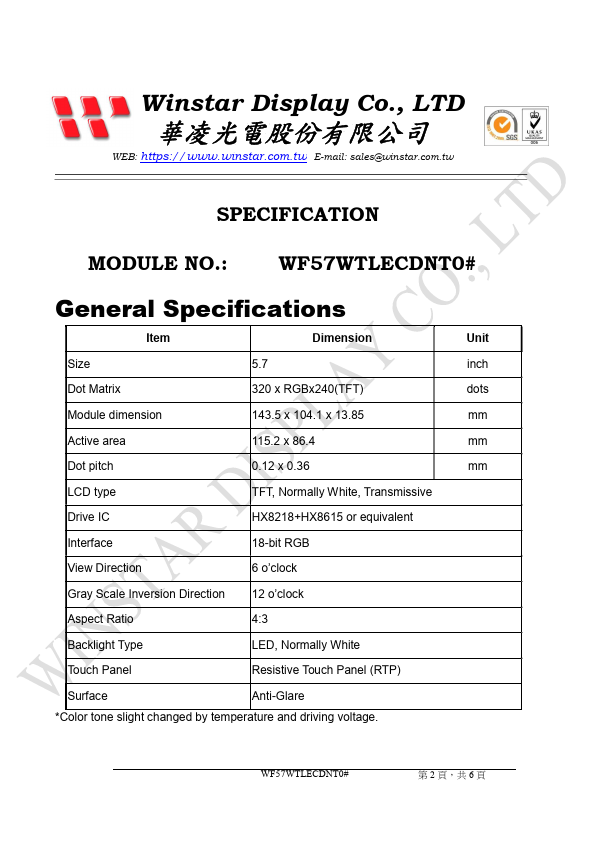

WINSTAR Display WF57WTLECDNT0
The non-specified tolerance of dimension is ±0.3 mm .| Part No. | WF57WTLECDNT0 |
|---|---|
| Datasheet | WF57WTLECDNT0 Download |
| Manufacturer | WINSTAR Display |
| Description | TFT Display |
| Buy | Stock & Price |

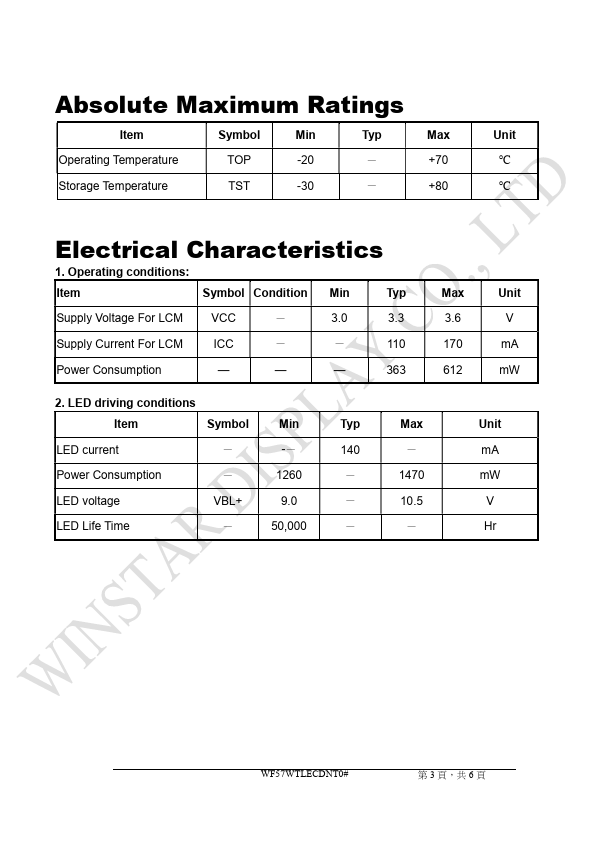

ABSOLUTE MAXIMUM RATINGS
Item Symbol Min Typ Max Unit Operating Temperature TOP -20 － +70 ℃ Storage Temperature TST -30 － +80 ℃ELECTRICAL CHARACTERISTICS

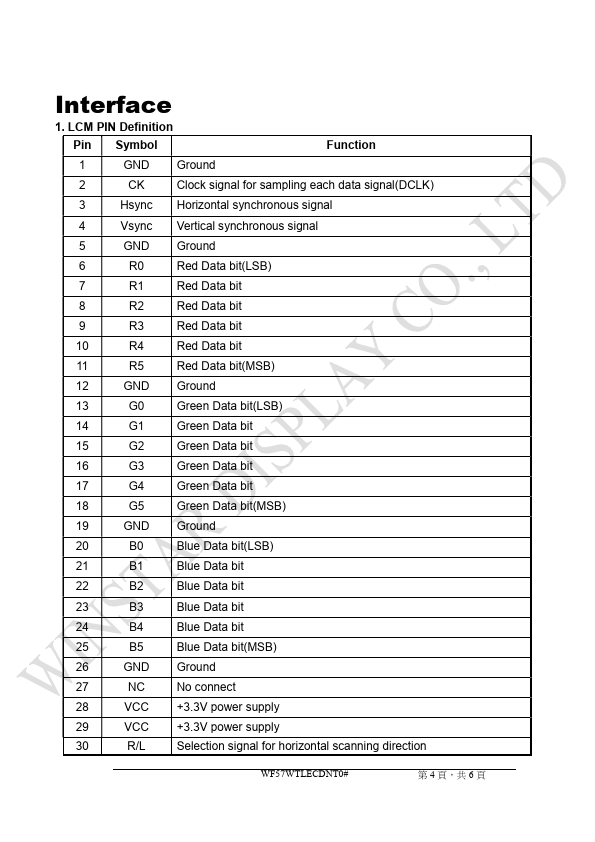

1. Operating conditions: Item Symbol Condition Min Typ Max Unit Supply Voltage For LCM VCC － 3.0 3.3 3.6 V Supply Current For LCM ICC － － 110 170 mA Power Consumption — — — 363 612 mW 2. LED driving conditions Item Symbol Min Typ Max Unit LED current － -－ 140 － mA Power Consumption － 1260 － 1470 mW LED voltage VBL+ 9.0 － 10.5 V LED Life Time － 50,000 － － Hr WF57WTLECDNT0# 第 3 頁，共 6 頁 Interface 1. LCM PIN Definition Pin Symbol Function 1 GND Ground 2 CK Clock signal for sampling each data signal(DCLK) 3 Hsync Horizontal synchronous signal 4 Vsync Vertical synchronous signal 5 GND Ground 6 R0 Red Data bit(LSB) 7 R1 Red Data bit 8 R2 Red Data bit 9 R3 Red Data bit 10 R4 Red Data bit 11 R5 Red Data bit(MSB) 12 GND Ground 13 G0 Green Data bit(LSB) 14 G1 Green Data bit 15 G2 Green Data bit 16 G3 Green Data bit 17 G4 Green Data bit 18 G5 Gr...
