WINSTAR Display WG12232C
The non-specified tolerance of dimension is ±0.3 mm .| Part No. | WG12232C |
|---|---|
| Datasheet | WG12232C Download |
| Manufacturer | WINSTAR Display |
| Description | LCD |
| Buy | Stock & Price |

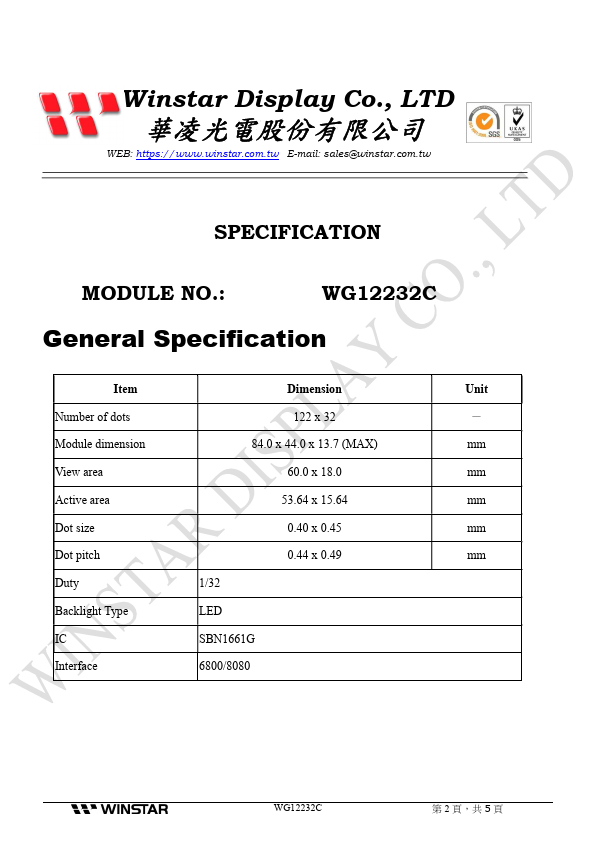

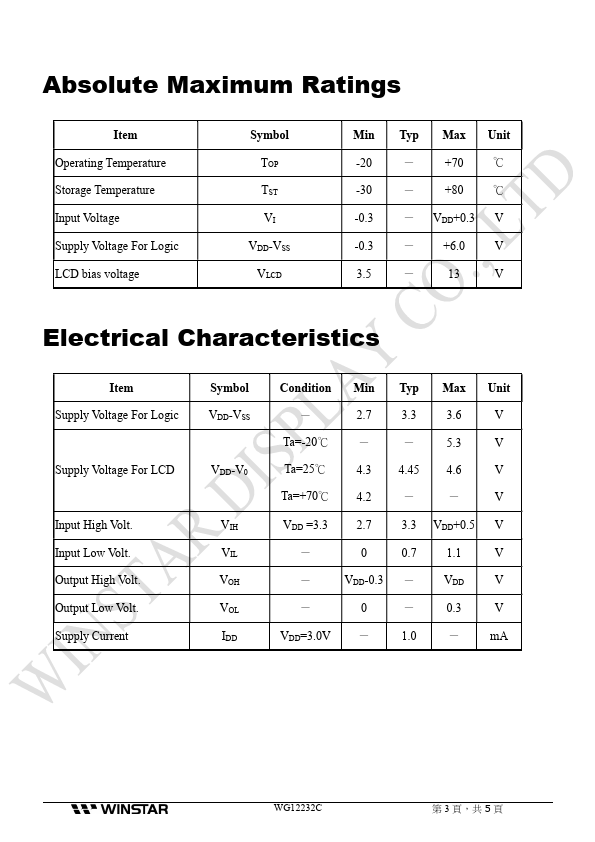

ABSOLUTE MAXIMUM RATINGS
Item Operating Temperature Storage Temperature Input Voltage Supply Voltage For Logic LCD bias voltage Symbol TOP TST VI VDD-VSS VLCD Min Typ Max Unit -20 － +70 ℃ -30 － +80 ℃ -0.3 － VDD+0.3 V -0.3 － +6.0 V 3.5 － 13 VELECTRICAL CHARACTERISTICS
Item Supply Voltage For Logic Supply Voltage For LCD Input High Volt. Input Low Volt. Output High Volt. Output Low Volt. Supply Current Symbol VDD-VSS VDD-V0 VIH VIL VOH VOL IDD Condition Min Typ Max Unit － 2.7 3.3 3.6 V Ta=-20℃ － － 5.3 V Ta=25℃ 4.3 4.45 4.6 V Ta=+70℃ 4.2 － － V VDD =3.3 2.7 3.3 VDD+0.5 V － 0 0.7 1.1 V － VDD-0.3 － VDD V － 0 － 0.3 V VDD=3.0V － 1.0 － mA WG12232C 第 3 頁，共 5 頁 Interface Pin Function Pin No. Symbol LevelDESCRIPTION

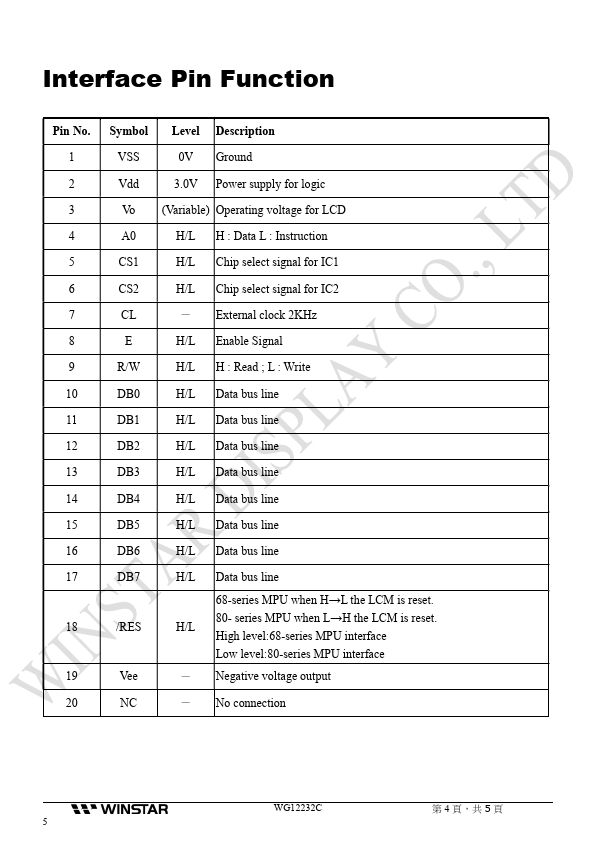

1 VSS 0V Ground 2 Vdd 3.0V Power supply for logic 3 Vo (Variable) Operating voltage for LCD 4 A0 H/L H : Data L : Instruction 5 CS1 H/L Chip select signal for IC1 6 CS2 H/L Chip select signal for IC2 7 CL － External clock 2KHz 8 E H/L Enable Signal 9 R/W H/L H : Read ; L : Write 10 D...
