Datasheet Summary
Winstar Display Co., LTD
華凌光電股份有限公司
WEB: https://.winstar..tw E-mail: sales@winstar..tw

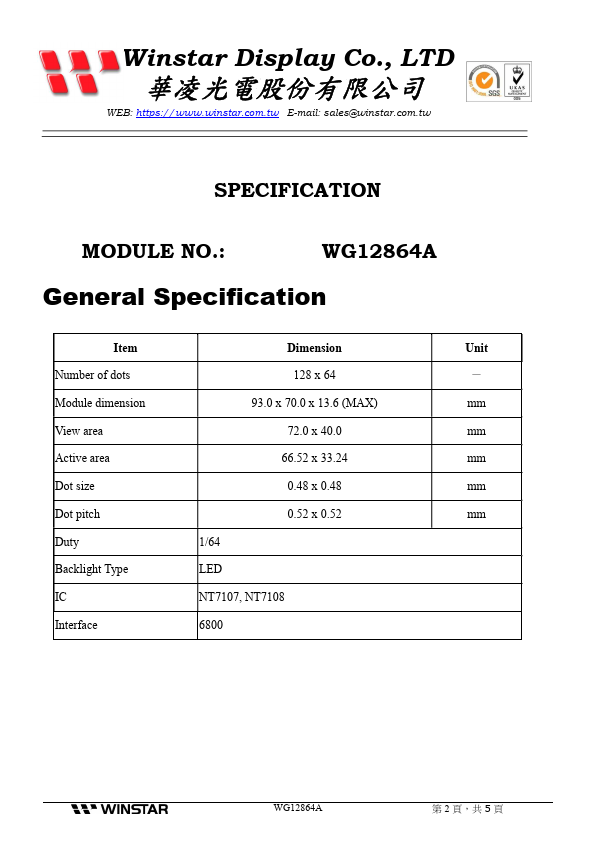

SPECIFICATION
MODULE NO.:
General Specification
Item
Dimension
Unit
Number of dots
128 x 64
－
Module dimension
93.0 x 70.0 x 13.6 (MAX) mm
View area
72.0 x 40.0 mm
Active area
66.52 x 33.24 mm
Dot size
0.48 x 0.48 mm
Dot pitch
0.52 x 0.52 mm
Duty
1/64
Backlight Type
NT7107, NT7108
Interface
第 2 頁，共 5...
