WG320240BX - 320 x 240 Display

Description

/WR Data write.

/RD Data read.

Winstar

📥 Download Datasheet

Datasheet Details

Part number	WG320240BX
Manufacturer	Winstar
File Size	177.33 KB
Description	320 x 240 Display
Datasheet	WG320240BX Datasheet

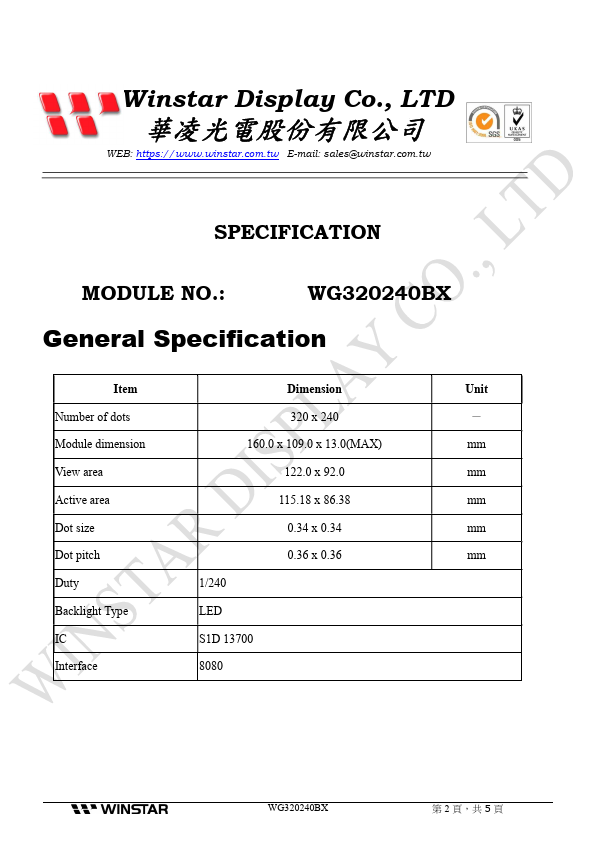

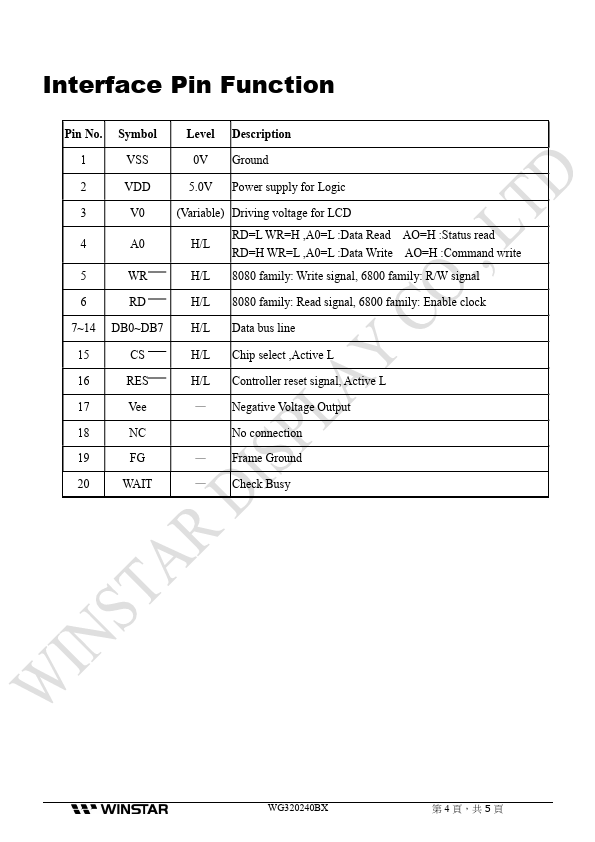

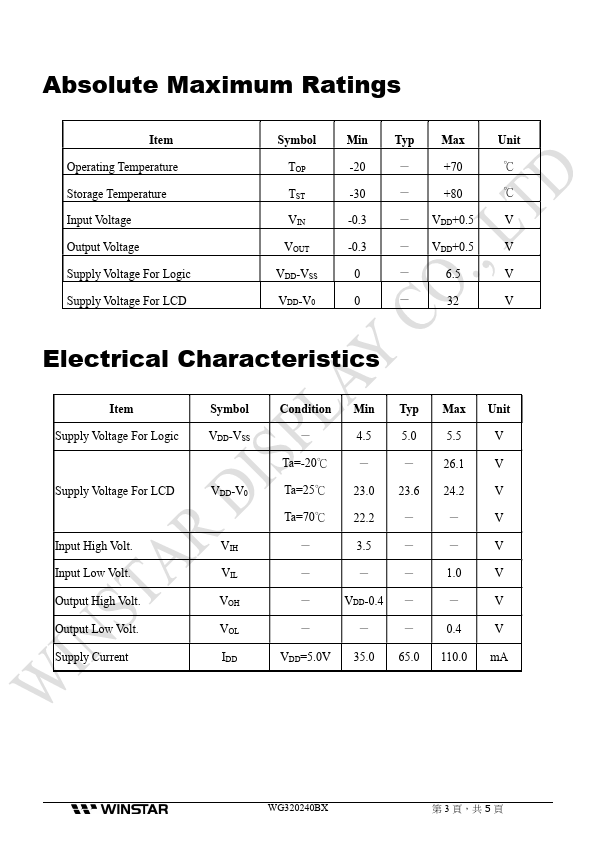

Additional preview pages of the WG320240BX datasheet.

📁 Similar Datasheet

WG320240B-FTC-V - Display Module (ETC)
WG30N65HA1 - IGBT (WeEn)
WG30N65HAW1 - IGBT (WeEn)
WG30N65HAW2 - IGBT (WeEn)
WG30N65HAX1 - IGBT (WeEn)
WG30N65HF1 - IGBT (WeEn)
WG30N65HFB1 - IGBT (WeEn)
WG30N65HFW1 - IGBT (WeEn)
WG30N65HJ1 - IGBT (WeEn)
WG30N65MAW1 - IGBT (WeEn)

Other Datasheets by Winstar

WG320240B - 320 x 240 Display
WG320240BP2 - 320 x 240 Display
WG320240BP3 - 320 x 240 Display
WG320240A - 320 x 240 Display
WG320240C - 320 x 240 Display
WG320240C0 - 320 x 240 Display
WG320240D - 320 x 240 Display
WG320240D-FMC-N - Display Module

Full PDF Text Transcription

Click to expand full text

WG320240BX/BP2/BP3 Graphic 320x240 dots 4.0 25.0 28.41 160.0 0.5 152.0 122.0(VA) 115.18(AA) 13.0MAX 6.5 1.0 4.0 2.15 8.5 11.31 109.0 0.5 101.0 104.7 92.0(VA) 86.38(AA) 320*240 Dots CN-FPC-20P/P1.0 (UP-Side) 1.0 (PCB) LED B/L 0.36 0.34 44.0 0.36 0.34 4-Ø3.5PT H 4-Ø6.0PAD 47.4 DOT SIZE SCALE 10/1 Feature 1. Built-in controller RA8835 and SRAM 2. Built-in Negative voltage generator 3. 1/240 duty cycle 4. Touch screen option (analog type) 5. Temperature compensation option Pin No. 1 2 3 4 5 6 7~14 15 16 17 18 19 20 Symbol Description VSS Ground VDD Power supply for logic VO Contrast Adjustment A0 Data/ Instruction select signal /WR Data write. Write data into LCD Controller /RD Data read.

Published: Apr 18, 2017 |
