Datasheet Details
| Part number | WH1602A |
|---|---|
| Manufacturer | Winstar |
| File Size | 204.73 KB |
| Description | LCD |
| Datasheet | WH1602A_Winstar.pdf |
|
|
|

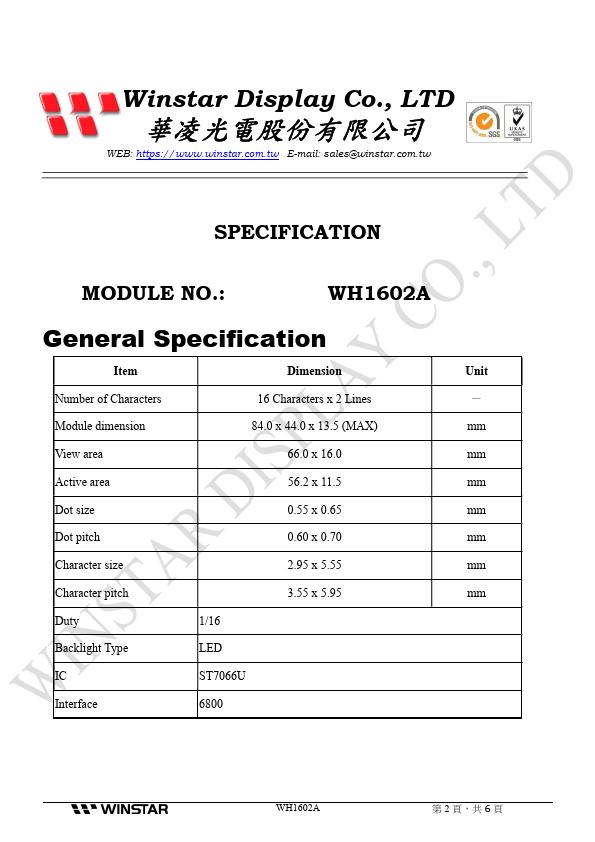

Overview: 4.0 7.8 12.4 14.65 WH1602A Character 16x2 9.7Max 13.2Max 4.8 8.6 13.5Max 8.9 2.5 6.4 9.0 13.9 84.0 0.5 79.0 71.2 66.0(VA) 56.2(AA) 16-1.0 PTH 1.8 10.2 P2.54*15=38.1 4.0 76.0 2.5 5.95 5.55 0.7 0.65 2-R1.25PTH 2-R2.5PAD 1.6 1.6 1.6 A LED B/L LED B/L LED B/L 10.16 15.32 K 6-1.0 PTH 6-2.0 PAD 3.55 2.95 0.6 0.55 0.6 2-2.5 PTH 2-5.0 PAD 44.0 0.5 36.0 25.2 16.0(VA) 11.5(AA) 0.4 Feature 1.5x8 dots includes cursor 2.Bulit-in controller (ST7066 or Equivalent) 3.+5V power supply ( Also available for +3V) 4.N.V, optional for +3V power supply 5.1/16 duty cycle 6.LED can be driven by PIN1, PIN2, PIN15, PIN16 or A and K 7.Interface : 6800, SPI, I2C 8.WH1602N : PIN1-PIN16 in order Pin No.
| Part number | WH1602A |
|---|---|
| Manufacturer | Winstar |
| File Size | 204.73 KB |
| Description | LCD |
| Datasheet | WH1602A_Winstar.pdf |
|
|
|

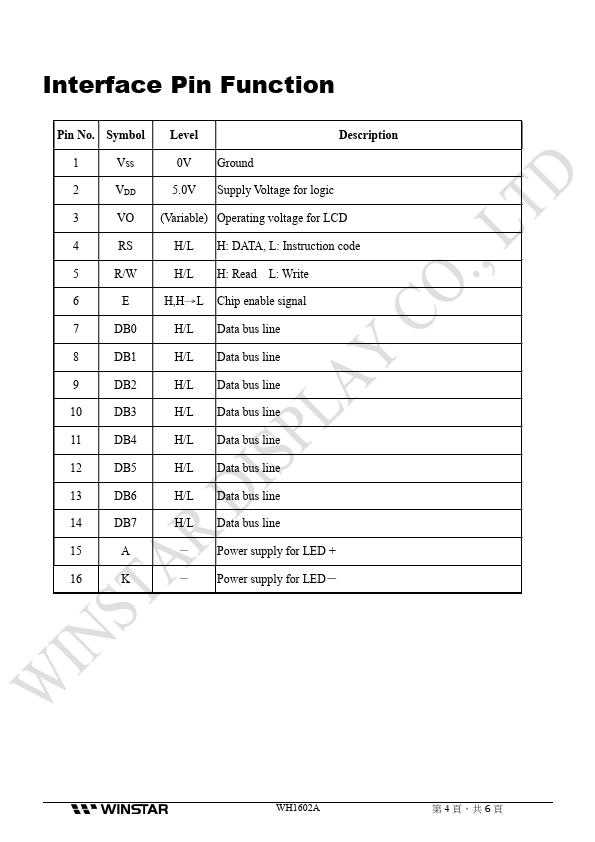

VSS Ground VDD Power supply for logic VO Contrast Adjustment RS Data/ Instruction select signal R/W Read/Write select signal E Enable signal DB0 Data bus line DB1 Data bus line DB2 Data bus line DB3 Data bus line DB4 Data bus line DB5 Data bus line DB6 Data bus line DB7 Data bus line A Power supply for B/L + K Power supply for B/L - 8 LCD Panel / LCD Module / OLED Display / TFT LCM DOT SIZE SCALE 5/1 Mechanical Data Item Module Dimension Viewing Area Mounting Hole Character Size Standard Value 84.0 x 44.0 66.0 x 16.0 79.0 / 76.0 x 36.0 2.95 x 5.55 Unit mm mm mm mm Electrical Characteristics Item Input Voltage Symbol VDD Standard Value typ.
Unit 3/5 V Remended LCD Driving Voltage for Normal Temp.
Version module @25ºC VDD-VO 3.70 V Display Character Address Code
