Description

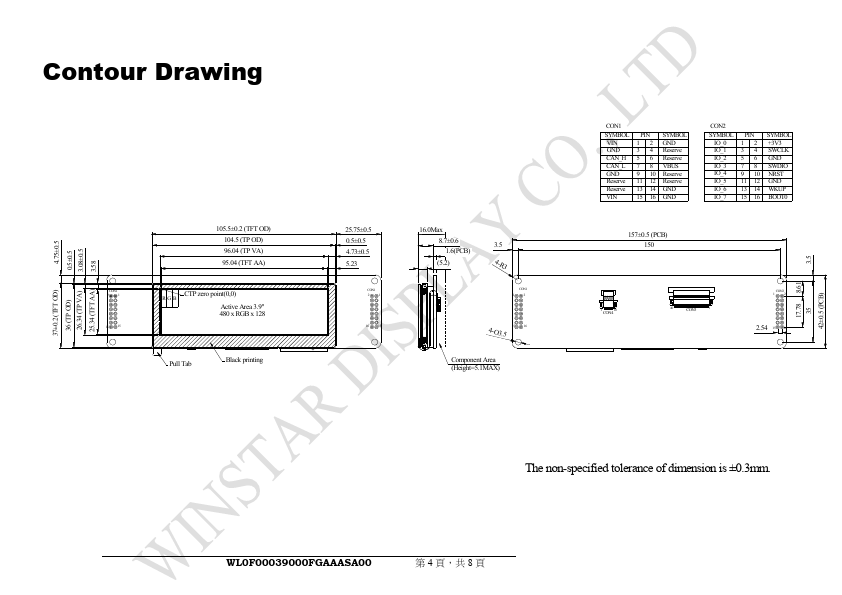

WL0F00039000FGAAASA00 第 5 頁，共 8 頁 SPI Flash Master/Slave QSPI Flash Master/Slave MOSI MISO SCK CS WP BK1_IO0 BK1_IO1 BK1_IO2 BK1_IO3 CLK NCS CLK DQ0 ~ DQ15 A0 ~ A11 BA1 , BA0 L(U)DQM CTP_I2C SDARM 3.9’’ TFT Panel 480*128 CON4 LED CTP without control board R.G.B. MCU Driver Boost converter VIN IC (Upside down used) CON3 MCU +3V3 GPIO Buzzer Can High/ CON 1 Can Low CAN Transceivers CON WL0F00039000FGAAASA00 第 6 頁，共 8 頁 Interface CON1 definition: Pin Symbol Function 1 VIN Power supply 5V to 48V input 2 GND Power supply GND input 3 GND Power supply GND input 4 Reserve Differential signal D- 5 CAN_H CAN bus D+ 6 Reserve Differential signal D+ 7 CAN_L CAN bus D- 8 VBUS 5V output for UART interface 9 GND Power supply GND input 10 Reserve UART1_RX 11 Reserve - 12 Reserve UART1_TX 13 Reserve - 14 GND Power supply GND input 15 VIN Power supply 5V to 48V input 16 GND Power supply GND input I/O allow below 3.3V input.

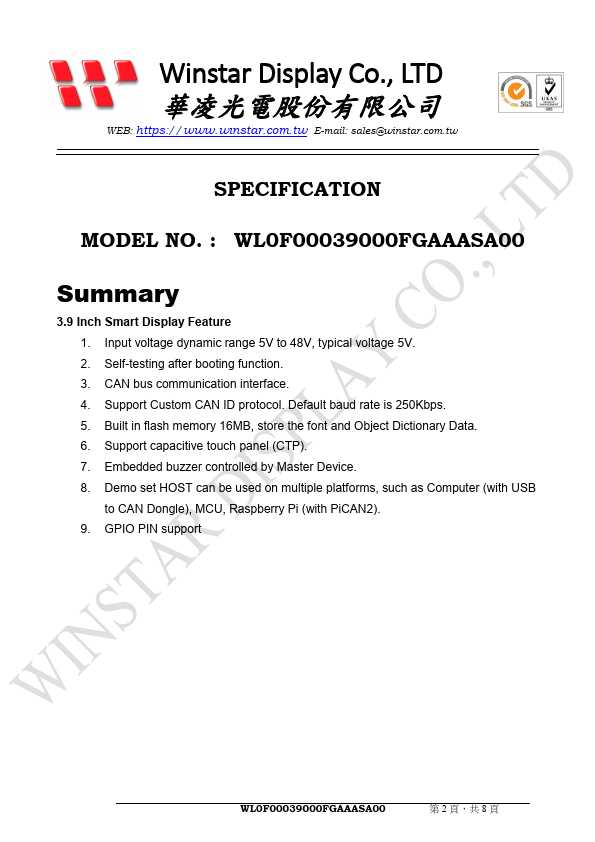

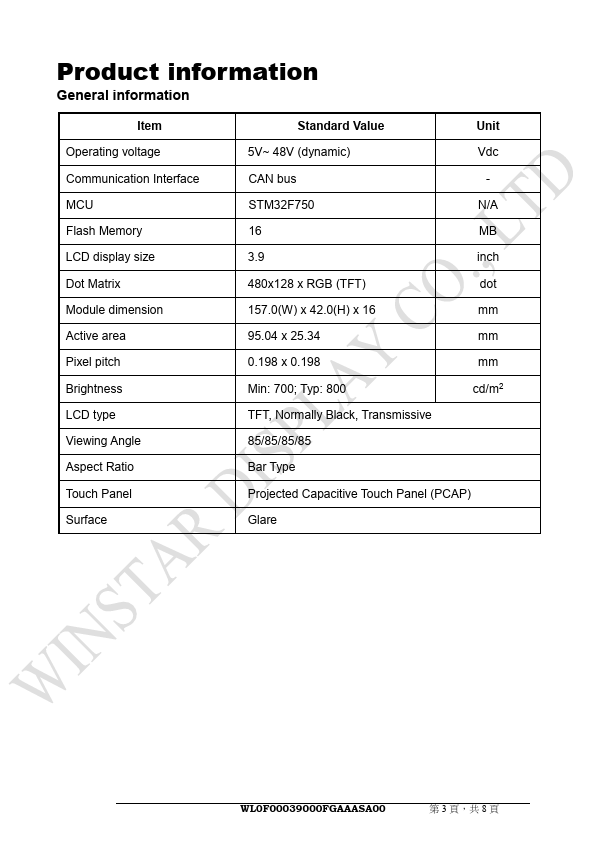

Key Features
- Self-testing after booting function
- CAN bus munication interface
- Support Custom CAN ID protocol. Default baud rate is 250Kbps
- Built in flash memory 16MB, store the font and Object Dictionary Data
- Support capacitive touch panel (CTP)
- Embedded buzzer controlled by Master Device
- Demo set HOST can be used on multiple platforms, such as puter (with USB to CAN Dongle), MCU, Raspberry Pi (with PiCAN2)
