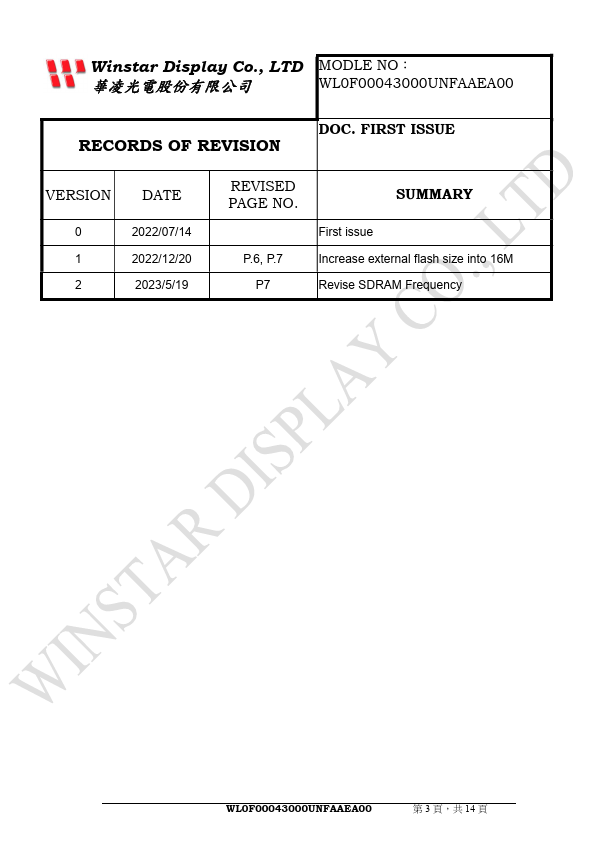

WL0F00043000UNFAAEA00
features are described as below: 4.3 Inch Smart Display Feature
1. DC 5V working voltage. 2. UART Interface with customized UART protocol, default baud rate at 19200 bit/Sec. 3. Built in 16M flash memory. 4. WL0F00043000UNFAAEA00 is defined as a slave device, which is controlled by master device via customized mand to render display content on the display screen and return touch event position.
第 6 頁，共 14 頁
3. Product information
General information
Item Operating voltage munication Interface MCU Flash Memory SDRAM Frequency LCD display size Dot Matrix Module dimension Active area Dot pitch Brightness LCD type View Direction Aspect Ratio With /Without TP Surface
Standard Value 5 UART IT9866 16
16MB/ 360MHz 4.3 480 x RGBx272(TFT) 125.5(W)- 67.2(H)- 9.35(D) 95.04 x 53.856 0.066 x 0.198 400min, 480typ TFT, Normally White, Transmissive 12 o’clock 16:9 Without TP Glare
Unit Vdc N/A N/A MB inch dot mm mm mm cd/m2
第 7 頁，共 14 頁
67.2±0.5(PCB...
