Datasheet Summary
Winstar Display Co., LTD
華凌光電股份有限公司
WEB: https://.winstar..tw E-mail: sales@winstar..tw

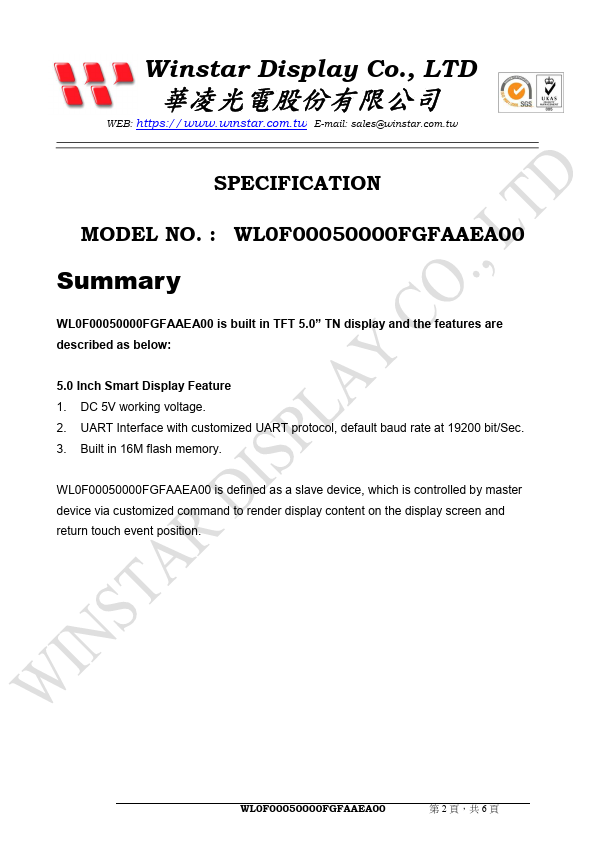

SPECIFICATION
MODEL NO. : WL0F00050000FGFAAEA00
Summary
WL0F00050000FGFAAEA00 is built in TFT 5.0” TN display and the Features are described as below:
5.0 Inch Smart Display Feature 1. DC 5V working voltage. 2. UART Interface with customized UART protocol, default baud rate at 19200 bit/Sec. 3. Built in 16M flash memory.
WL0F00050000FGFAAEA00 is defined as a slave device, which is controlled by master device via customized mand to render display content on the display screen and return touch event position.
第 2 頁，共 6 頁

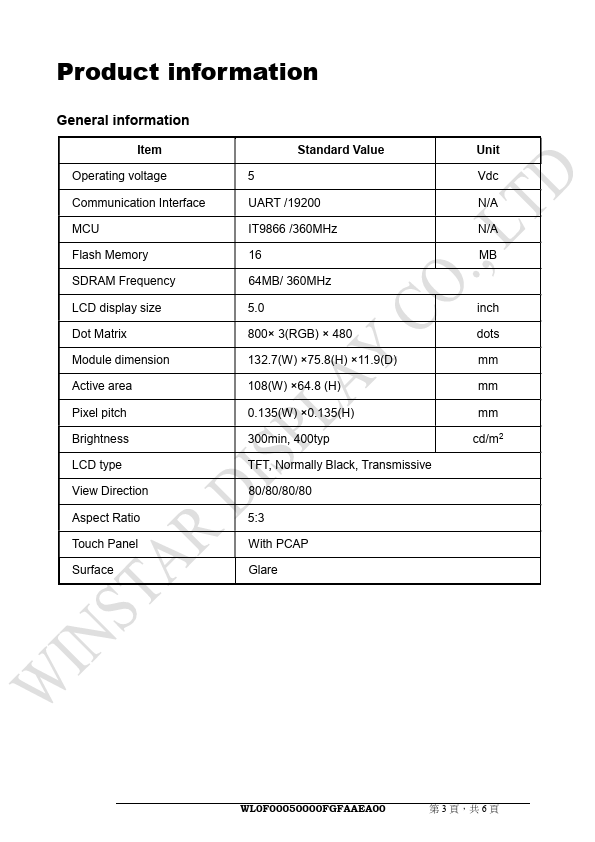

Product information
General information
Item...
