Description

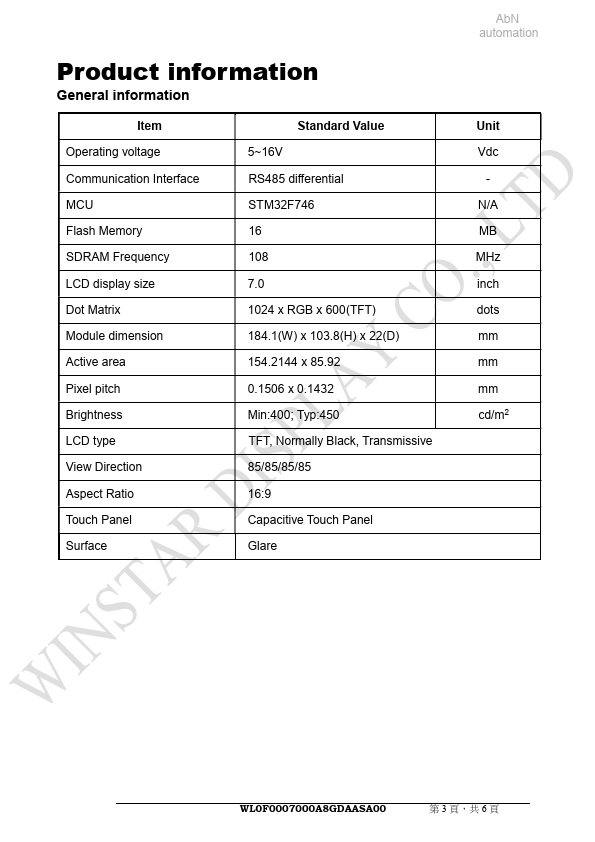

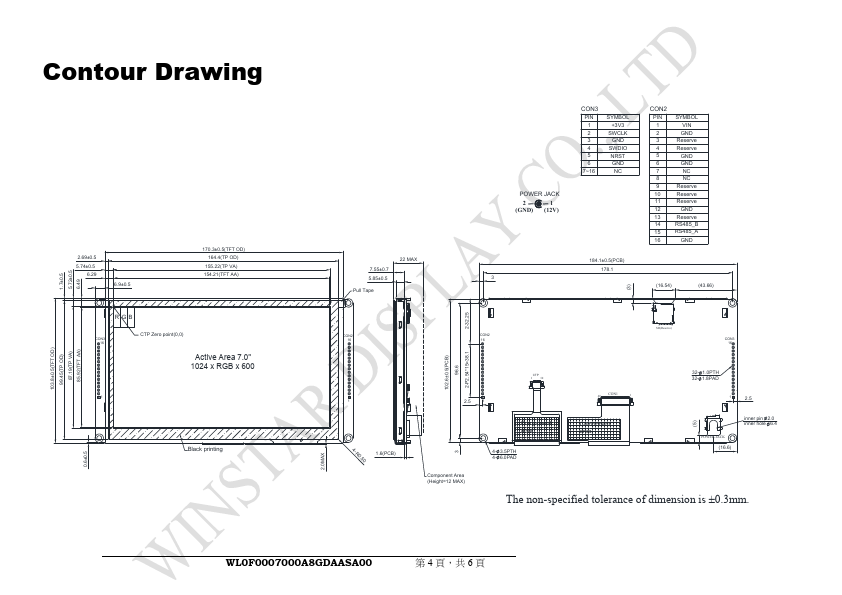

WF70A8TYAHLNGB# SV10007R00AAA00N0104 WL0F0007000A8GDAASA00 第 5 頁，共 6 頁 Interface CON2 definition: Pin Symbol 1 VIN 2 GND 3 Reserve 4 Reserve 5 GND 6 GND 7 NC 8 NC 9 Reserve 10 Reserve 11 Reserve 12 GND 13 Reserve 14 RS485_B 15 RS485_A 16 GND CON3 definition: Pin Symbol 1 +3V3 2 SWCLK 3 GND 4 SWDIO 5 NRST 6 GND 7~16 NC Function Power supply V+ Power supply GND input _ _ Power supply GND input Power supply GND input _ _ _ _ _ GND _ RS485 DATARS485 DATA+ GND Remark Input Input _ _ Input Input _ _ _ _ _ GND _ I/O I/O GND Function 3.3V power for JTAG interface CLK pin for JTAG interface GND for JTAG interface Data pin for JTAG interface Reset pin for JTAG interface GND _ Remark Output Input Output I/O Input Output _ WL0F0007000A8GDAASA00 第 6 頁，共 6 頁.

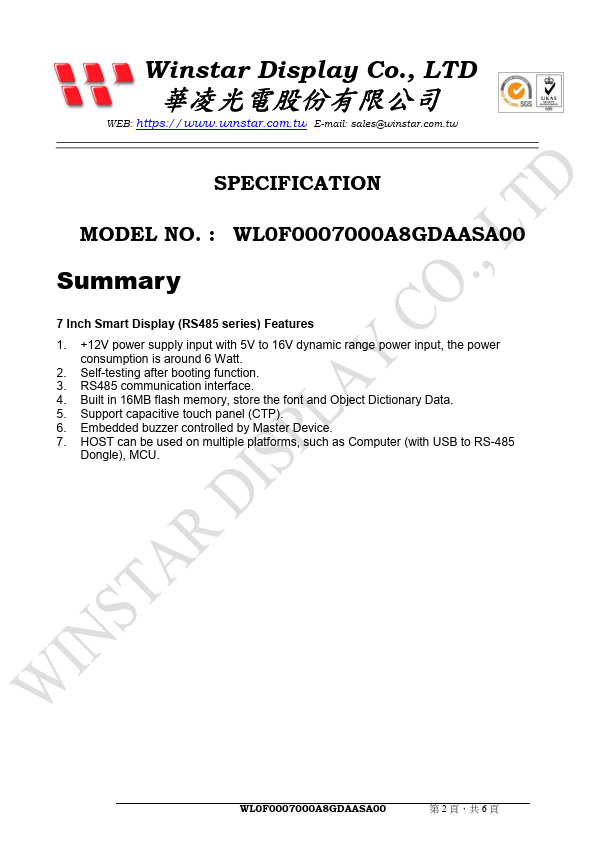

Key Features
- Self-testing after booting function
- RS485 munication interface
- Built in 16MB flash memory, store the font and Object Dictionary Data
- Support capacitive touch panel (CTP)
- Embedded buzzer controlled by Master Device
