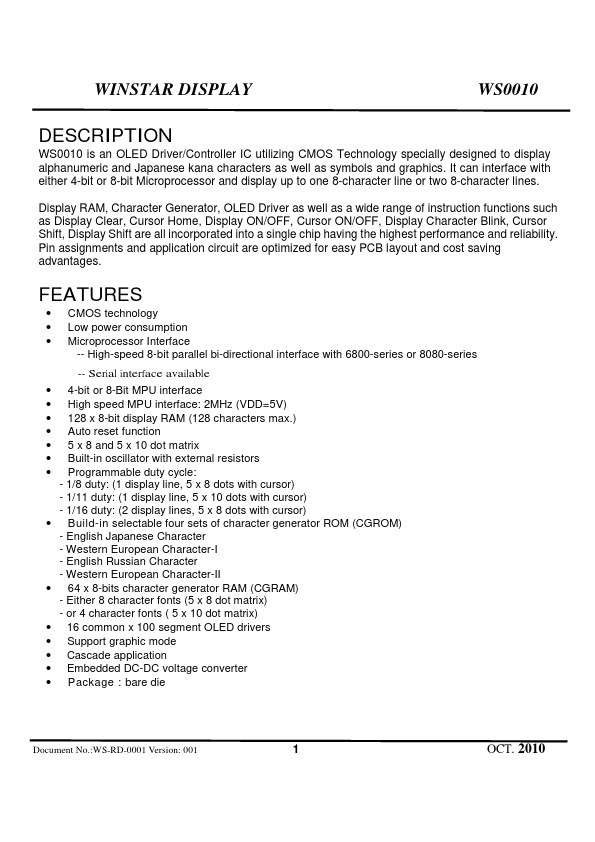

WINSTAR DISPLAY DESCRIPTION WS0010 is an OLED Driver/Controller IC utilizing CMOS Technology specially designed to display alphanumeric and Japanese kana characters as well as symbols and graphics. It can interface with either 4-bit or 8-bit Microprocessor and display up to one 8-character line or two 8-character lines. Display RAM, Character Generator, OLED Driver as well as a wide range of instruction functions such as Display Clear, Cursor Home, Display ON/OFF, Cursor ON/OFF, Display Character Blink, Cursor Shift, Display Shift are all incorporated into a single chip having the highest performance and reliability. Pin assignments and application circuit are optimized for easy PCB layout and cost saving advantages. Features - CMOS technology - Low power consumption - Microprocessor Interface -- High-speed 8-bit parallel bi-directional interface with 6800-series or 8080-series -- Serial interface available - 4-bit or 8-Bit MPU interface - High speed MPU interface: 2MHz (VDD=5V) - 128 x 8-bit display RAM (128 characters max.) - Auto reset function - 5 x 8 and 5 x 10 dot matrix - Built-in oscillator with external resistors - Programmable duty cycle: - 1/8 duty: (1 display line, 5 x 8 dots with cursor) - 1/11 duty: (1 display line, 5 x 10 dots with cursor) - 1/16 duty: (2 display lines, 5 x 8 dots with cursor) - Build-in selectable four sets of character generator ROM (CGROM) - English Japanese Character - Western European Character-I - English Russian Character - Western European Character-II - 64 x 8-bits character generator RAM (CGRAM) - Either 8 character fonts (5 x 8 dot matrix) - or 4 character fonts ( 5 x 10 dot matrix) - 16 mon x 100 segment OLED drivers - Support graphic...
