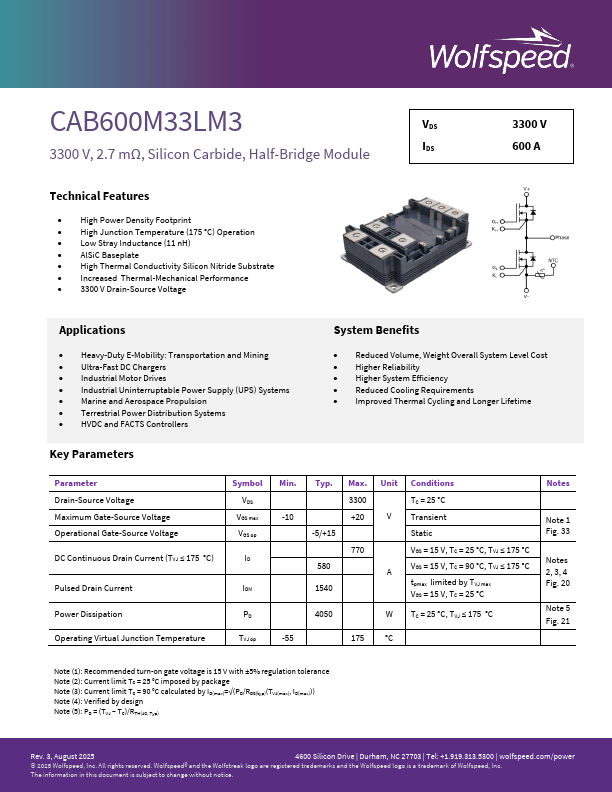

CAB600M33LM3
CAB600M33LM3 is Half-Bridge Module manufactured by Wolfspeed.
3300 V, 2.7 mΩ, Silicon Carbide, Half-Bridge Module
3300 V 600 A
Technical Features
- High Power Density Footprint
- High Junction Temperature (175 °C) Operation
- Low Stray Inductance (11 n H)
- Al Si C Baseplate
- High Thermal Conductivity Silicon Nitride Substrate
- Increased Thermal-Mechanical Performance
- 3300 V Drain-Source Voltage
Applications
- Heavy-Duty E-Mobility: Transportation and Mining
- Ultra-Fast DC Chargers
- Industrial Motor Drives
- Industrial Uninterruptable Power Supply (UPS) Systems
- Marine and Aerospace Propulsion
- Terrestrial Power Distribution Systems
- HVDC and FACTS Controllers
System Benefits
- Reduced Volume, Weight Overall System Level Cost
- Higher Reliability
- Higher System Efficiency
- Reduced Cooling Requirements
- Improved Thermal Cycling and Longer Lifetime
Key Parameters
Parameter Drain-Source Voltage Maximum Gate-Source Voltage Operational Gate-Source Voltage DC Continuous Drain Current (TVJ ≤ 175 °C)
Pulsed Drain Current
Power Dissipation Operating Virtual Junction Temperature
Symbol VDS
VGS max VGS...
