BX68R002 Description

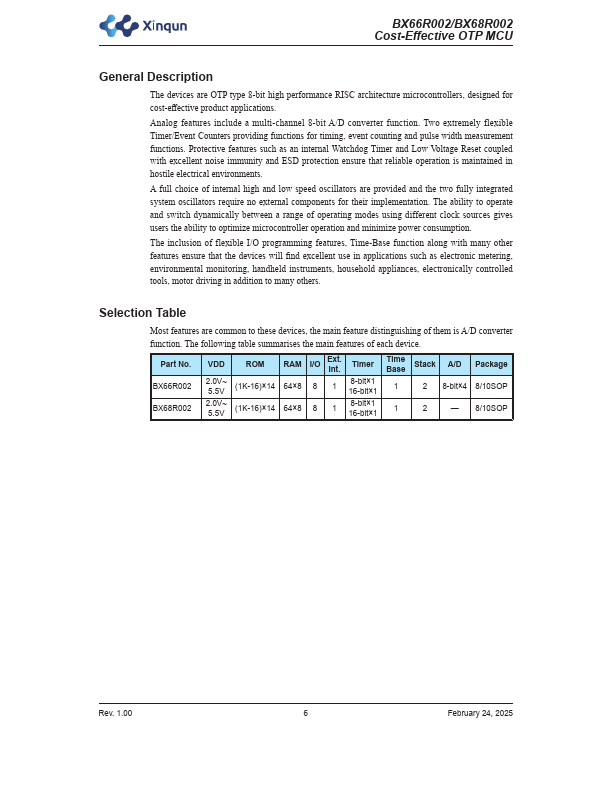

The devices are OTP type 8-bit high performance RISC architecture microcontrollers, designed for cost-effective product applications.
BX68R002 Key Features
- Operating voltage
- fSYS=8MHz: 2.0V~5.5V
- Up to 0.5μs instruction cycle with 8MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types
- Internal High Speed 8MHz RC
- Internal Low Speed 32kHz RC
- Multi-mode operation: FAST, SLOW, IDLE and SLEEP
- Fully integrated internal oscillators require no external ponents
- All instructions executed in one or two instruction cycles
