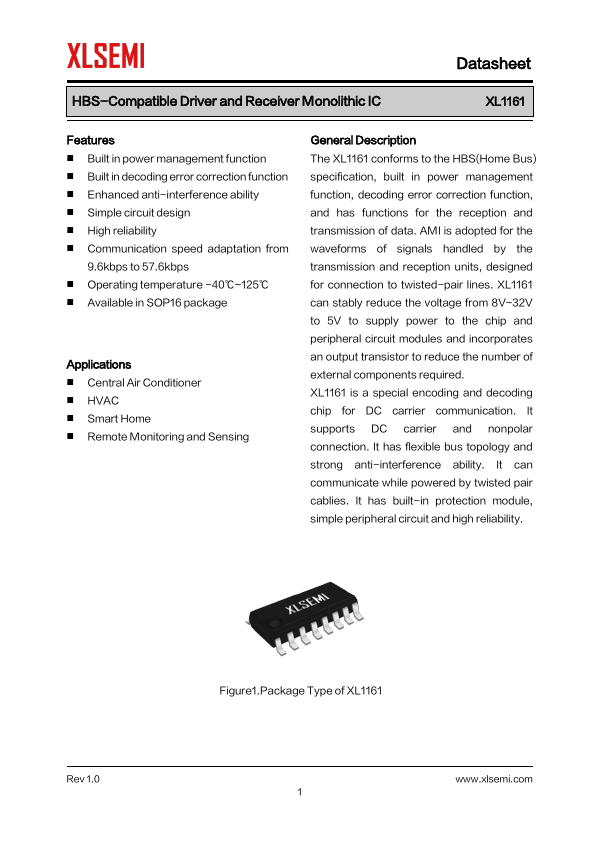

Datasheet Summary
HBS-patible Driver and Receiver Monolithic IC
Features
- Built in power management function
- Built in decoding error correction function
- Enhanced anti-interference ability
- Simple circuit design
- High reliability
- munication speed adaptation from
9.6kbps to 57.6kbps
- Operating temperature -40℃~125℃
- Available in SOP16 package
Applications
- Central Air Conditioner
- HVAC
- Smart Home
- Remote Monitoring and Sensing
General Description The XL1161 conforms to the HBS(Home Bus) specification, built in power management function, decoding error correction function, and has functions for the reception and transmission of data. AMI is adopted for the waveforms of...
