XL1513 - 2A 380KHz 18V Buck DC to DC Converter

Product Overview

XLSEMI

Datasheet Details

Part number	XL1513
Manufacturer	XLSEMI
File Size	363.54 KB
Description	2A 380KHz 18V Buck DC to DC Converter
Datasheet	XL1513 Datasheet

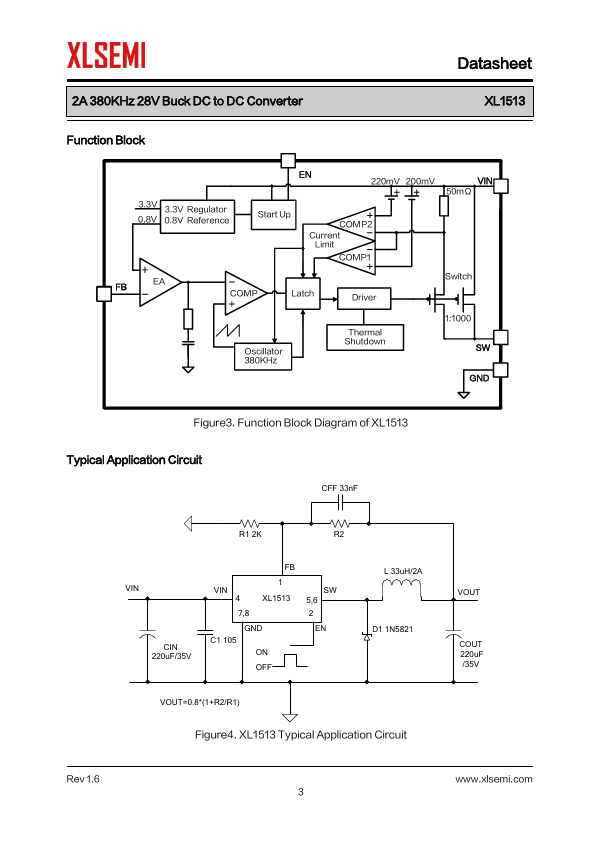

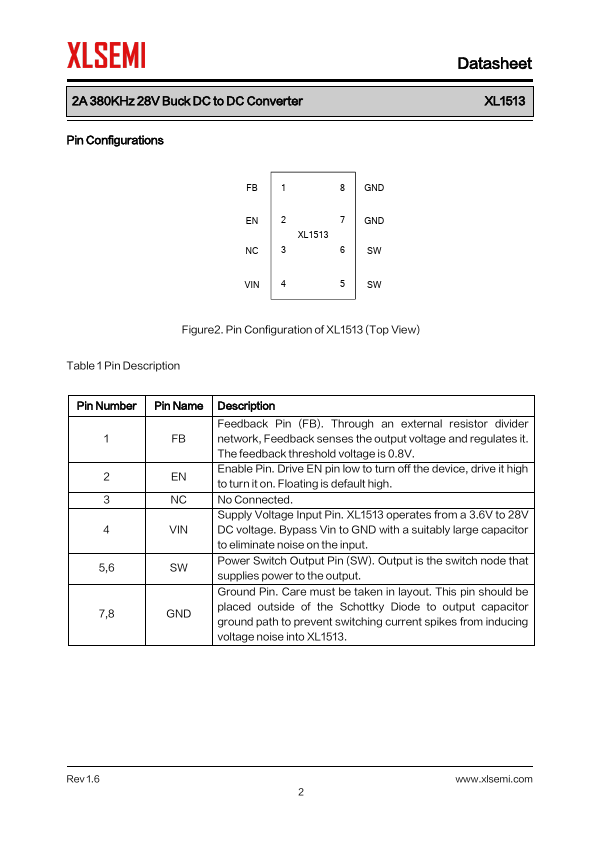

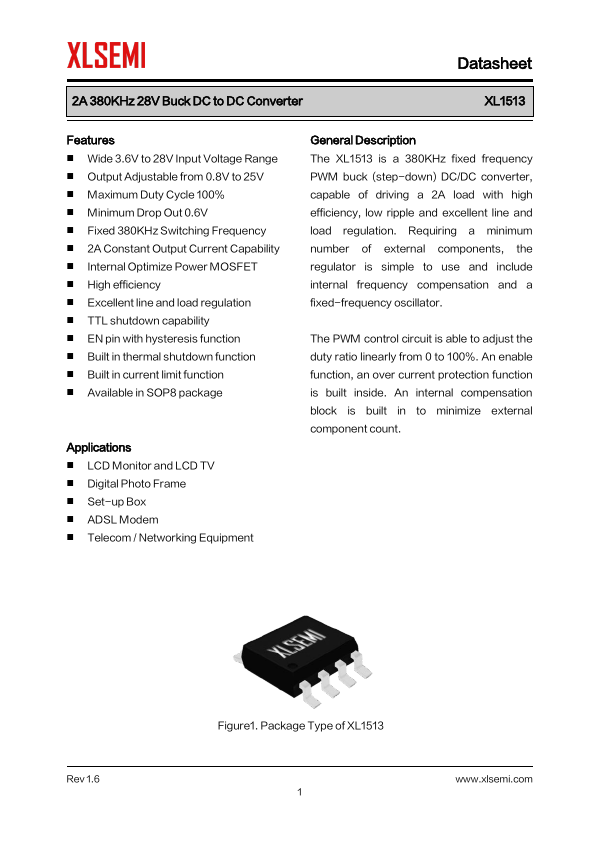

Additional preview pages of the XL1513 datasheet.

Product details

Description

The XL1513 is a 380KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 2A load with high efficiency, low ripple and excellent line and load regulation.

Features

Wide 3.6V to 18V Input Voltage Range.
Output Adjustable from 0.8V to 16V.
Maximum Duty Cycle 100%.
Minimum Drop Out 0.6V.
Fixed 380KHz Switching Frequency.
2A Constant Output Current Capability.
Internal Optimize Power MOSFET.
High efficiency.
Excellent line and load regulation.
TTL shutdown capability.
EN pin with hysteresis function.
Built in thermal shutdown function.
Built in current limit function.
Built in output short.
