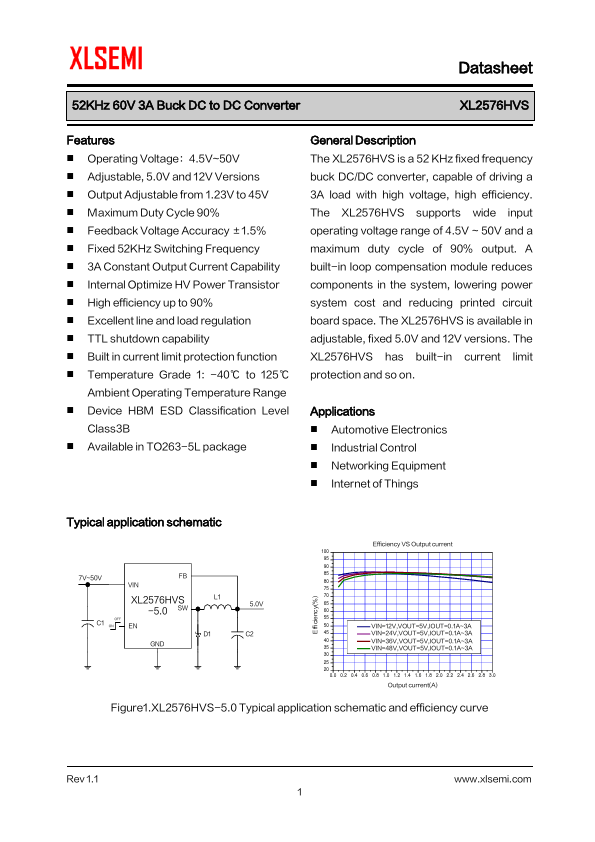

Datasheet Summary
52KHz 60V 3A Buck DC to DC Converter
Features
- Operating Voltage：4.5V~50V
- Adjustable, 5.0V and 12V Versions
- Output Adjustable from 1.23V to 45V
- Maximum Duty Cycle 90%
- Feedback Voltage Accuracy ±1.5%
- Fixed 52KHz Switching Frequency
- 3A Constant Output Current Capability
- Internal Optimize HV Power Transistor
- High efficiency up to 90%
- Excellent line and load regulation
- TTL shutdown capability
- Built in current limit protection function
- Temperature Grade 1: -40℃ to 125℃
Ambient Operating Temperature Range
- Device HBM ESD Classification Level
Class3B

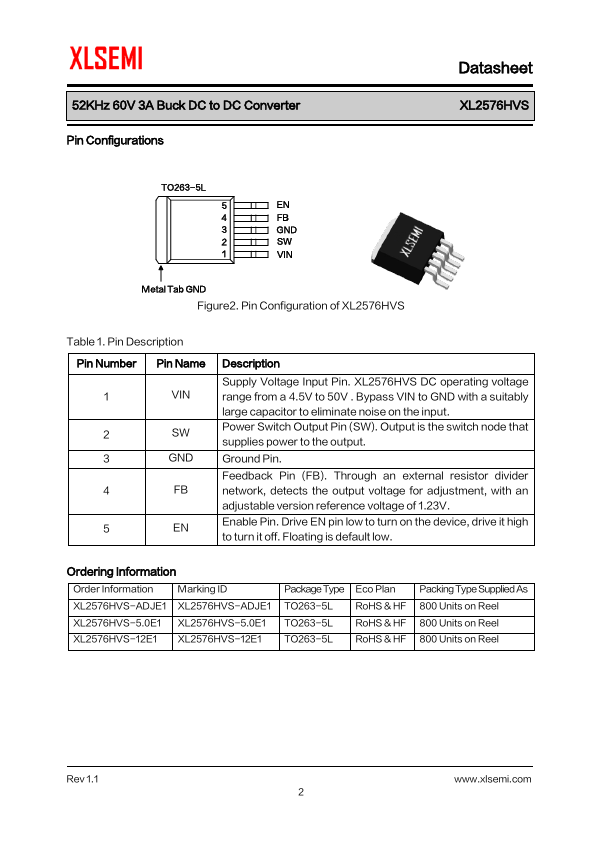

- Available in TO263-5L package
General Description The XL2576HVS is a 52 KHz fixed frequency buck...
