XL36
Overview

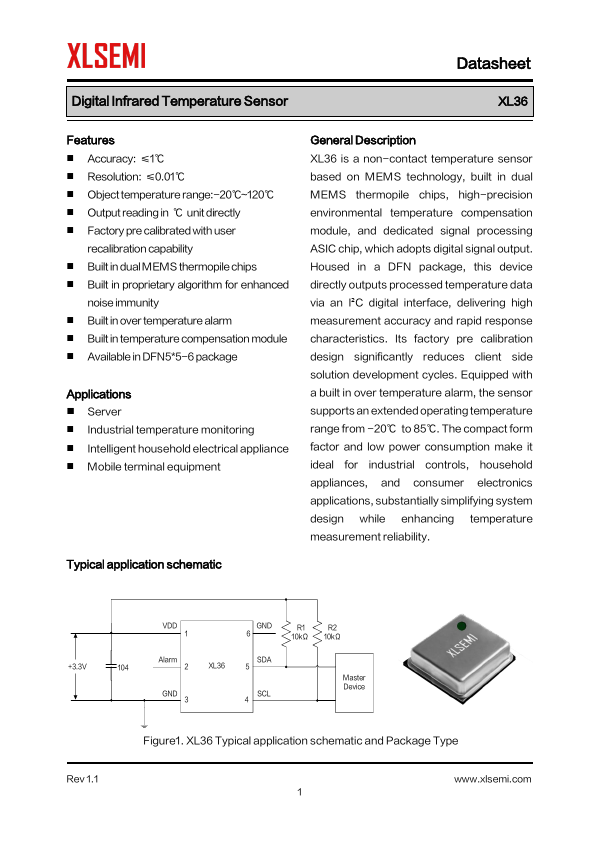

XL36 is a non-contact temperature sensor based on MEMS technology, built in dual MEMS thermopile chips, high-precision environmental temperature compensation module, and dedicated signal processing ASIC chip, which adopts digital signal output. Housed in a DFN package, this device directly outputs processed temperature data via an I²C digital interface, delivering high measurement accuracy and rapid response characteristics.
- Accuracy: ≤1℃
- Resolution: ≤0.01℃
- Object temperature range:-20℃~120℃
- Output reading in ℃ unit directly
- Factory pre calibrated with user recalibration capability
- Built in dual MEMS thermopile chips
- Built in proprietary algorithm for enhanced noise immunity
- Built in over temperature alarm
- Built in temperature compensation module
- Available in DFN5*5-6 package
