Datasheet Summary
Low Power Linear Hall Sensor
Features
- Wide Operating Voltage Range: 3V~8V
- Low Operation Current：
1.8mA@VDD=3.3V
- Linearity: ±1%
- Sensitivity: 3.40mV/Gs@VDD=3.3V
- Rail to Rail Linear Range:
0.2V ~ 3.1V@VDD=3.3V
- Low Noise Output Without External
Capacitor Filtering
- Temperature Grade 1: -40 ℃ to 125 ℃
Ambient Operating Temperature Range
- Device HBM ESD Classification Level
Class2
- TO92S-3 package
Applications
- Game Handle Trigger / Joystick
- Position / Liquid Level Sensing
- Motor Control

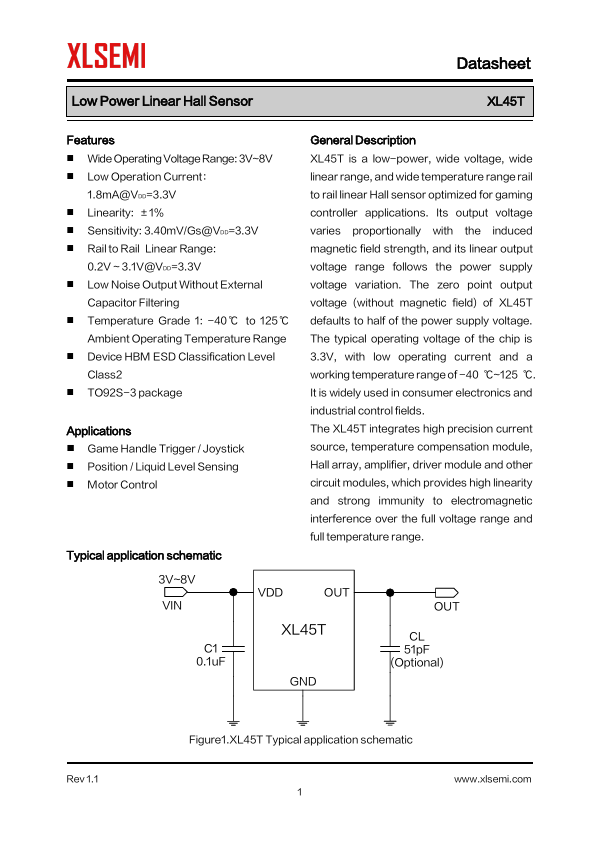

Typical application schematic
General Description XL45T is a low-power, wide voltage, wide linear range, and wide temperature range rail to rail linear Hall sensor optimized...
