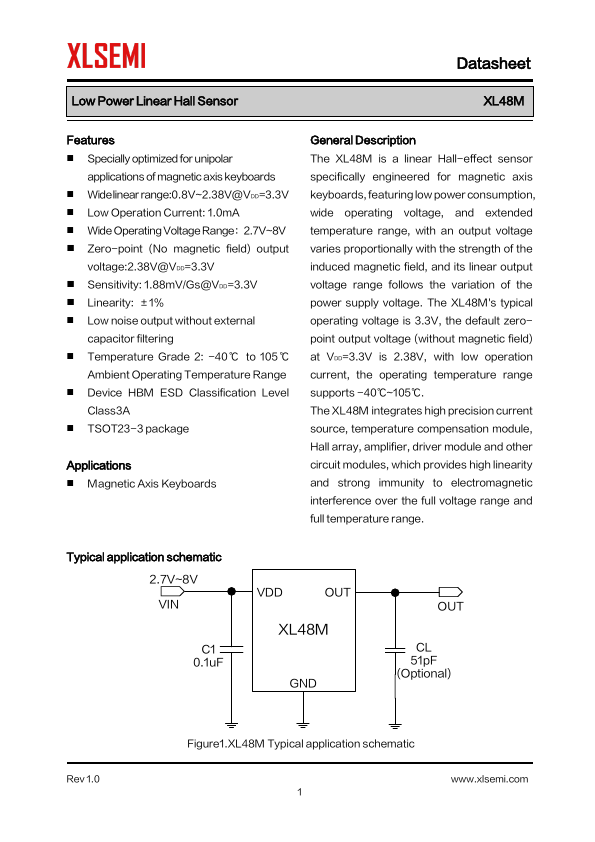

Datasheet Summary
Low Power Linear Hall Sensor
Features
- Specially optimized for unipolar applications of magnetic axis keyboards
- Widelinear range:0.8V~2.38V@VDD=3.3V
- Low Operation Current: 1.0mA
- Wide Operating Voltage Range：2.7V~8V
- Zero-point (No magnetic field) output voltage:2.38V@VDD=3.3V
- Sensitivity: 1.88mV/Gs@VDD=3.3V
- Linearity: ±1%
- Low noise output without external capacitor filtering
- Temperature Grade 2: -40 ℃ to 105 ℃ Ambient Operating Temperature Range
- Device HBM ESD Classification Level Class3A
- TSOT23-3 package
Applications
- Magnetic Axis Keyboards
General Description The XL48M is a linear Hall-effect sensor specifically engineered for magnetic axis...
