XL5002 - 600V 0.5A Switching Current Buck PFM LED Constant Current Driver

Description

The XL5002 is a monolithic high voltage switching regulator with PFM that is specifically designed to operate from a rectified 85V~265V AC mains supply.

The XL5002 is a high efficiency LED driver switching regulator.

Features

n n n n n n n n n n n n n Datasheet XL5002 General.

XLSEMI

📥 Download Datasheet

Datasheet Details

Part number	XL5002
Manufacturer	XLSEMI
File Size	481.36 KB
Description	600V 0.5A Switching Current Buck PFM LED Constant Current Driver
Datasheet	XL5002 Datasheet

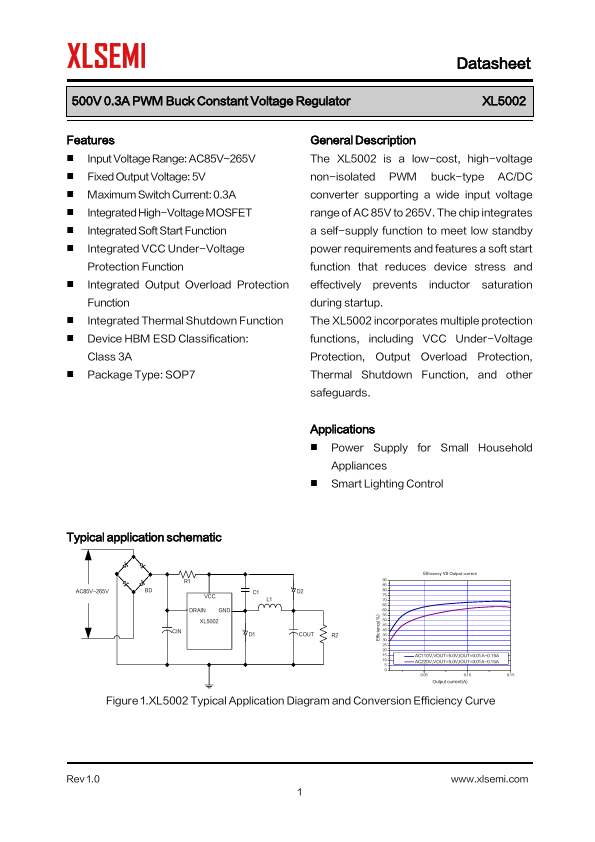

Additional preview pages of the XL5002 datasheet.

📁 Similar Datasheet

XL551 - LinCMOS process (XINLUDA)

Other Datasheets by XLSEMI

XL5003 - 600V 0.5A Switching Current Buck PFM LED Constant Current Driver
XL5004 - 600V 0.5A AC TO DC PFM LED Lighting Controller
XL5006 - 600V 0.5A Switching Current Buck PFM LED Constant Current Driver
XL534 - Latching Hall Switch Sensor
XL561 - Omnipolar Hall Switch Sensor
XL591 - Linear Hall Sensor

Full PDF Text Transcription

Click to expand full text

XLSEMI 600V 0.5A Switching Current Buck PFM LED Constant Current Driver Features n n n n n n n n n n n n n Datasheet XL5002 General Description The XL5002 is a monolithic high voltage switching regulator with PFM that is specifically designed to operate from a rectified 85V~265V AC mains supply. The XL5002 is a high efficiency LED driver switching regulator. The LED string is driven at DC constant current rather than constant voltage, thus providing constant current output and enhanced reliability. Operate from a rectified 85V~265V AC mains supply. 0.1V current sense voltage reference. Directly drive 1~5 series 1W LED. Excellent line and load regulation. Internal optimize power HV-MOSFET. Built in thermal shutdown function. Built in UVLO function. Built in current limiting function.

Published: Jul 17, 2014 |
