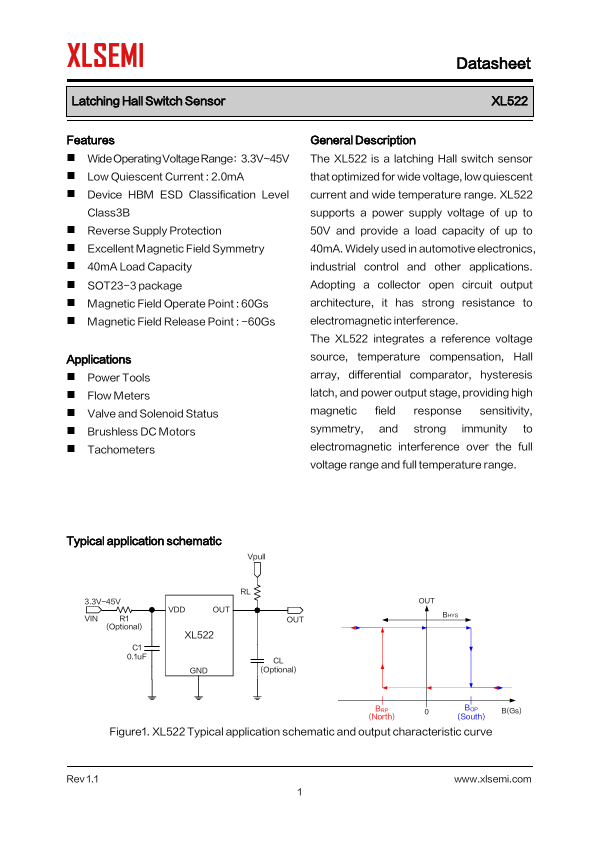

Datasheet Summary
Latching Hall Switch Sensor
Features
- Wide Operating Voltage Range：3.3V~45V
- Low Quiescent Current : 2.0mA
- Device HBM ESD Classification Level
Class3B
- Reverse Supply Protection
- Excellent Magnetic Field Symmetry
- 40mA Load Capacity

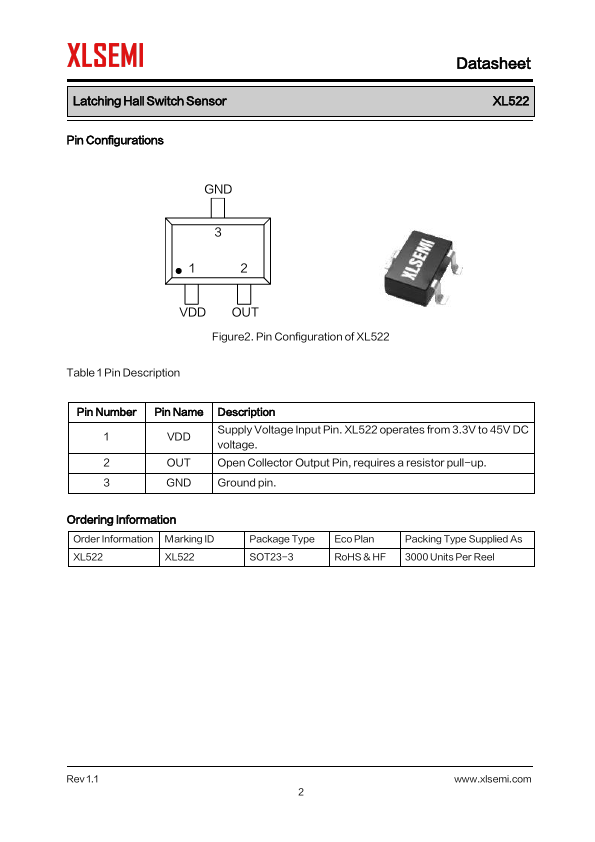

- SOT23-3 package
- Magnetic Field Operate Point : 60Gs
- Magnetic Field Release Point : -60Gs
Applications
- Power Tools
- Flow Meters
- Valve and Solenoid Status
- Brushless DC Motors
- Tachometers
General Description The XL522 is a latching Hall switch sensor that optimized for wide voltage, low quiescent current and wide temperature range. XL522 supports a power supply voltage of up to 50V and provide a load capacity of up to...
