XL6108 - 1A 1.2MHz 27V Built in SBD Boost DC/DC Converter

Product Overview

XLSEMI

Datasheet Details

Part number	XL6108
Manufacturer	XLSEMI
File Size	486.40 KB
Description	1A 1.2MHz 27V Built in SBD Boost DC/DC Converter
Datasheet	XL6108 Datasheet

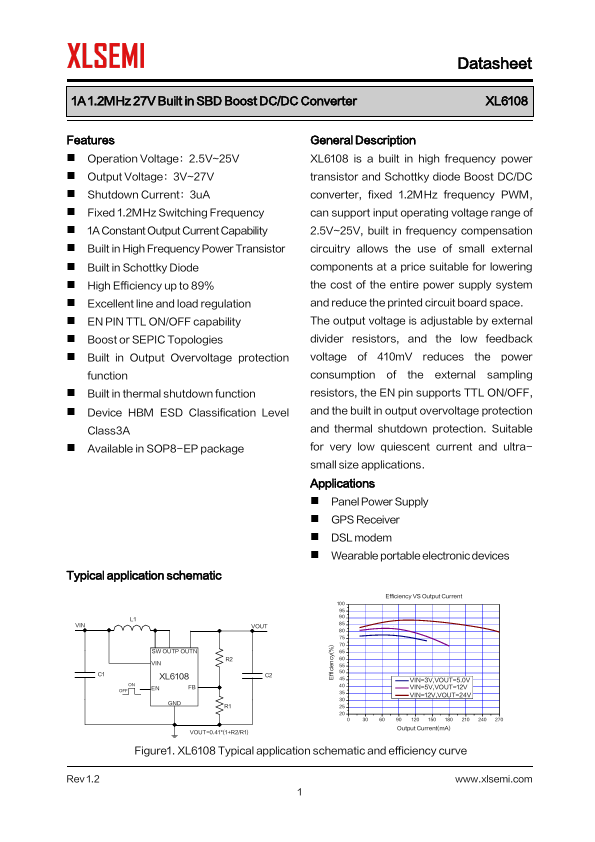

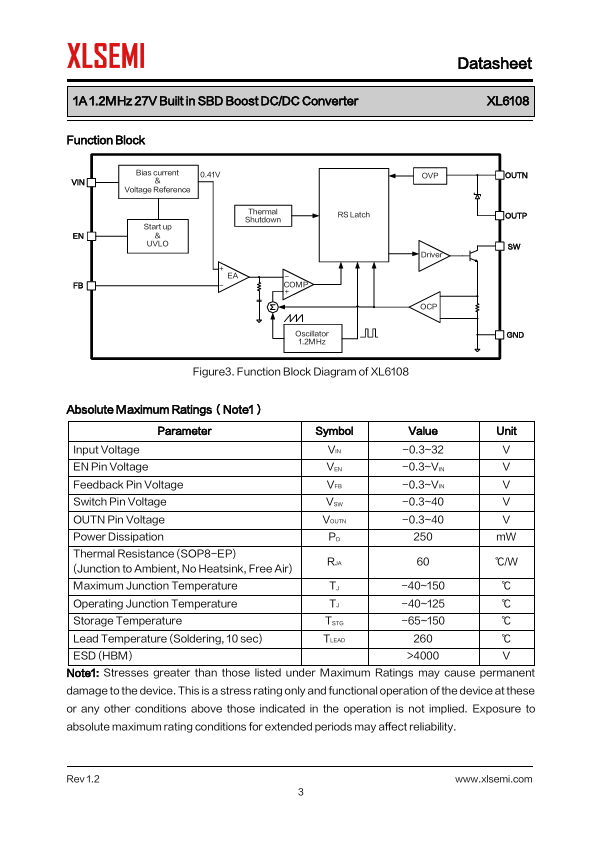

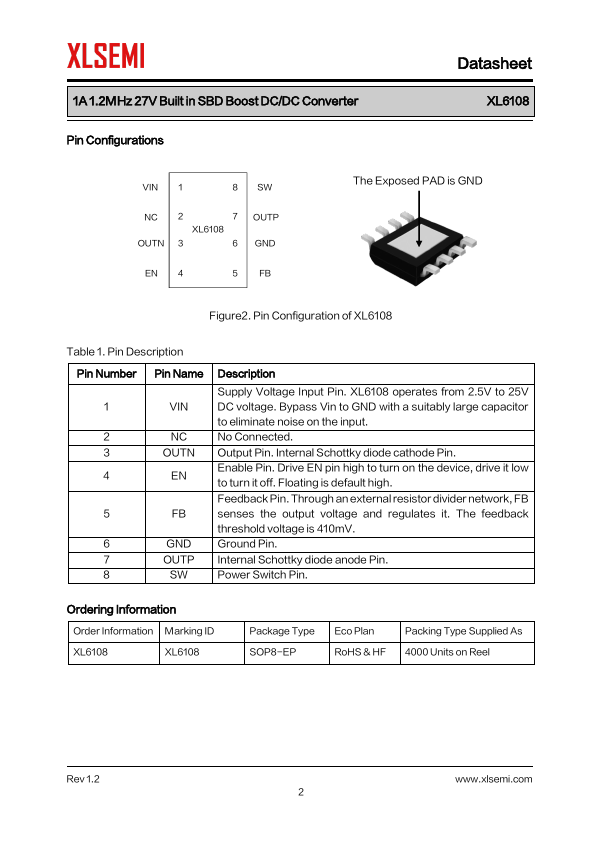

Additional preview pages of the XL6108 datasheet.

Product details

Description

XL6108 is a built in high frequency power transistor and Schottky diode Boost DC/DC converter, fixed 1.2MHz frequency PWM, can support input operating voltage range of 2.5V~25V, built in frequency compensation circuitry allows the use of small external components at a price suitable for lowering the cost of the entire power supply system and reduce the printed circuit board space.

Features

Operation Voltage：2.5V~25V.
Output Voltage：3V~27V.
Shutdown Current：3uA.
Fixed 1.2MHz Switching Frequency.
1A Constant Output Current Capability.
Built in High Frequency Power Transistor.
Built in Schottky Diode.
High Efficiency up to 89%.
Excellent line and load regulation.
EN PIN TTL ON/OFF capability.
Boost or SEPIC Topologies.
Built in Output Overvoltage protection function.
Built in thermal shutdown function.
Device HBM.
