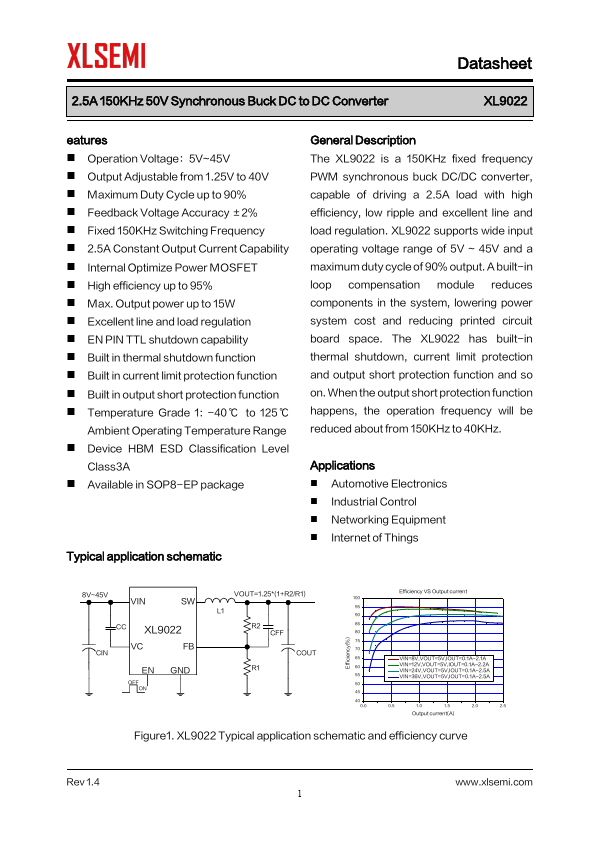

Datasheet Summary
2.5A 150KHz 50V Synchronous Buck DC to DC Converter
XL9022 eatures
- Operation Voltage：5V~45V
- Output Adjustable from 1.25V to 40V
- Maximum Duty Cycle up to 90%
- Feedback Voltage Accuracy ±2%
- Fixed 150KHz Switching Frequency
- 2.5A Constant Output Current Capability
- Internal Optimize Power MOSFET
- High efficiency up to 95%
- Max. Output power up to 15W
- Excellent line and load regulation
- EN PIN TTL shutdown capability
- Built in thermal shutdown function
- Built in current limit protection function
- Built in output short protection function
- Temperature Grade 1: -40 ℃ to 125 ℃
Ambient Operating Temperature Range
- Device HBM ESD Classification Level
Class3A
-...
